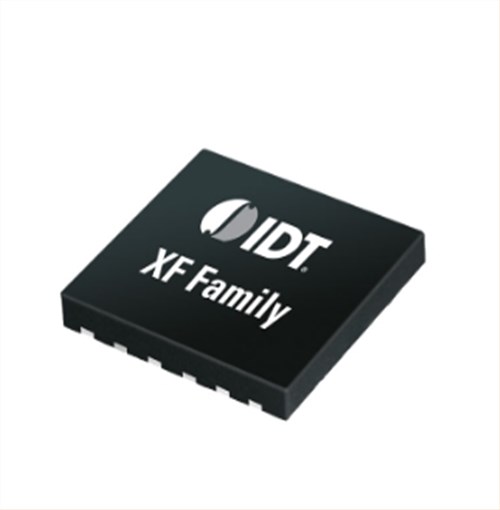

Renesas瑞薩晶振 XFP236156.250000I 6G無線晶振，尺寸2.5x2.0mm，頻率156.25MHZ，電壓3.3V，頻率穩定性25ppm，輸出邏輯LVPECL，XO時鐘振蕩器，歐美進口差分晶振，OSC差分晶振，LVPECL輸出晶振，LVPECL差分晶體振蕩器，2520mm差分晶體振蕩器，SMD有源差分晶振，十二腳貼片差分晶振，6G無線差分晶振，瑞薩差分振蕩器，6G電信差分晶振，測試測量差分晶振，儀器設備晶振，路由器差分晶振，高品質差分晶振，高性能差分晶振，低抖動差分晶振，低損耗差分晶振，低功耗差分晶振，低電壓差分晶振，具有低抖動高品質的特點.

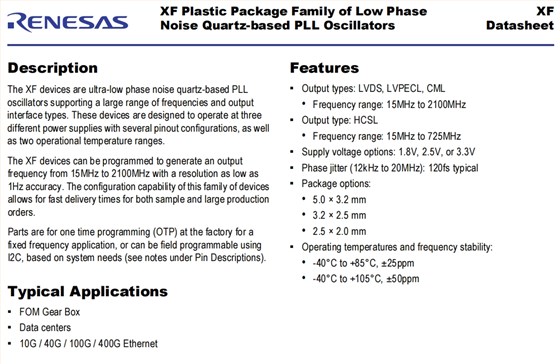

XF設備是基于石英的超低相位噪聲PLL支持大范圍頻率和輸出的OSC振蕩器接口類型。這些設備設計為在三具有多種引腳輸出配置的不同電源作為兩個操作溫度范圍。XF設備可以編程以生成輸出頻率從15MHz到2100MHz，分辨率低至1Hz精度。Renesas瑞薩晶振 XFP236156.250000I 6G無線晶振.

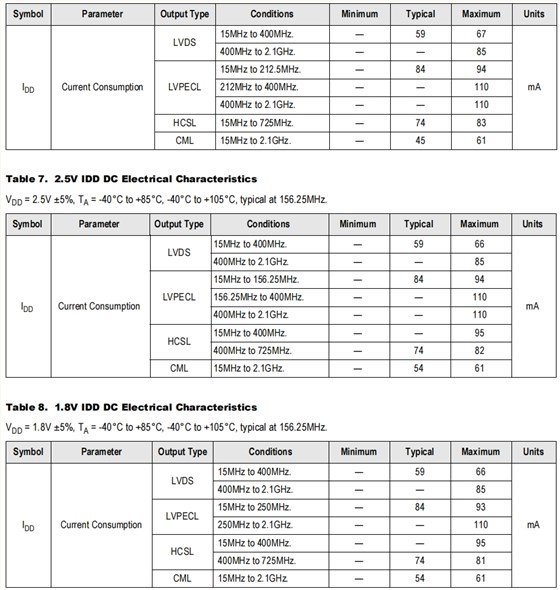

Renesas瑞薩晶振 XFP236156.250000I 6G無線晶振 參數表

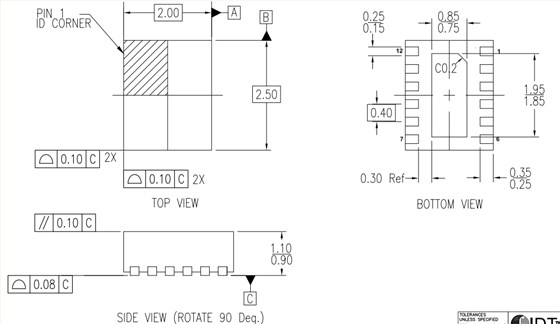

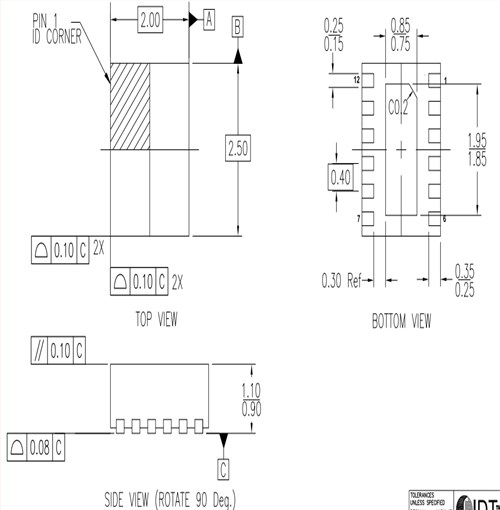

Renesas瑞薩晶振 XFP236156.250000I 6G無線晶振 尺寸圖
差分晶振產品特性:
輸出類型：LVDS、LVPECL、CML
頻率范圍：15MHz至2100MHz
輸出類型：HCSL
頻率范圍：15MHz至725MHz
電源電壓選項：1.8V、2.5V或3.3V
相位抖動（12kHz至20MHz）：典型值為120fs
程序包選項：
5.0×3.2毫米
3.2×2.5毫米
2.5×2.0毫米
工作溫度和頻率穩定性：
-40°C至+85°C，±25ppm
-40°C至+105°C，±50ppm
更多相關美國瑞薩晶振型號
| Mfr Part # | 美國進口晶振 | Description | Series | Frequency | Output | Voltage - Supply |
| XFC236156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ CML SMD | XFC | 156.25 MHz | CML | 3.3V |
| XFP236625.000000I | Renesas晶振 | XTAL OSC XO 625.0000MHZ LVPECL | XFP | 625 MHz | LVPECL | 3.3V |
| XFP236312.500000I | Renesas晶振 | XTAL OSC XO 312.5000MHZ LVPECL | XFP | 312.5 MHz | LVPECL | 3.3V |
| XFP536625.000000I | Renesas晶振 | 625.000000 MHZ 3.3VDC LVPECL 503 | XF | 625 MHz | LVPECL | 3.3V |
| XFN516100.000000I | Renesas晶振 | 100.000000 MHZ 1.8VDC HCSL 5032 | XF | 100 MHz | HCSL | 1.8V |
| XFL526125.000000I | Renesas晶振 | 125.000000 MHZ 2.5VDC LVDS 5032 | XF | 125 MHz | LVDS | 2.5V |
| XFP236156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVPECL | XFP | 156.25 MHz | LVPECL | 3.3V |
| XFL235837.500000K | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 837.5 MHz | LVDS | 3.3V |
| XFP235156.250000K | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 156.25 MHz | LVPECL | 3.3V |
| XFN336100.000000I | Renesas晶振 | 100.000000 MHZ 3.3VDC HCSL 3225 | XF | 100 MHz | HCSL | 3.3V |
| XFP336312.500000I | Renesas晶振 | 312.500000 MHZ 3.3VDC LVPECL 322 | XF | 312.5 MHz | LVPECL | 3.3V |
| XFL336156.250000I | Renesas晶振 | 156.250000 MHZ 3.3VDC LVDS 3225 | XF | 156.25 MHz | LVDS | 3.3V |
| XFP236148.500000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 148.5 MHz | LVPECL | 3.3V |
| XFN236100.000000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 100 MHz | HCSL | 3.3V |
| XFL516100.000000I | Renesas晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | XF | 100 MHz | LVDS | 1.8V |
| XFL536125.000000I | Renesas晶振 | XTAL OSC XO 125.0000MHZ LVDS SMD | XF | 125 MHz | LVDS | 3.3V |
| XFL336032.768000I | Renesas晶振 | XTAL OSC XO 32.7680MHZ LVDS SMD | XF | 32.768 MHz | LVDS | 3.3V |
| XFL316125.000000I | Renesas晶振 | XTAL OSC XO 125.0000MHZ LVDS SMD | XF | 125 MHz | LVDS | 1.8V |
| XFP526156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVPECL | XF | 156.25 MHz | LVPECL | 2.5V |
| XFP536025.000000I | Renesas晶振 | XTAL OSC XO 25.0000MHZ LVPECL | XF | 25 MHz | LVPECL | 3.3V |
| XFL336333.330000I | Renesas晶振 | XTAL OSC XO 333.3300MHZ LVDS SMD | XF | 333.33 MHz | LVDS | 3.3V |
| XFL336032.000000I | Renesas晶振 | XTAL OSC XO 32.0000MHZ LVDS SMD | XF | 32 MHz | LVDS | 3.3V |
| XFL526032.000000I | Renesas晶振 | XTAL OSC XO 32.0000MHZ LVDS SMD | XF | 32 MHz | LVDS | 2.5V |
| XFL336333.333333I | Renesas晶振 | XTAL OSC XO 333.333333MHZ LVDS | XF | 333.333333 MHz | LVDS | 3.3V |
| XFL336125.000000I | Renesas晶振 | XTAL OSC XO 125.0000MHZ LVDS SMD | XF | 125 MHz | LVDS | 3.3V |
| XFL516500.000000I | Renesas晶振 | XTAL OSC XO 500.0000MHZ LVDS SMD | XF | 500 MHz | LVDS | 1.8V |
| XFL316300.000000I | Renesas晶振 | XTAL OSC XO 300.0000MHZ LVDS SMD | XF | 300 MHz | LVDS | 1.8V |
| XFL336148.425824I | Renesas晶振 | XTAL OSC XO 148.425824MHZ LVDS | XF | 148.425824 MHz | LVDS | 3.3V |
| XFL336161.132812I | Renesas晶振 | XTAL OSC XO 161.132812MHZ LVDS | XF | 161.132812 MHz | LVDS | 3.3V |
| XFP336161.132812I | Renesas晶振 | XTAL OS XO 161.132812MHZ LVPECL | XF | 161.132812 MHz | LVPECL | 3.3V |
| XFL536026.000000I | Renesas晶振 | XTAL OSC XO 26.0000MHZ LVDS SMD | XF | 26 MHz | LVDS | 3.3V |
| XFL536100.000000I | Renesas晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | XF | 100 MHz | LVDS | 3.3V |
| XFL336096.000000I | Renesas晶振 | XTAL OSC XO 96.0000MHZ LVDS SMD | XF | 96 MHz | LVDS | 3.3V |
| XFL336048.000000I | Renesas晶振 | XTAL OSC XO 48.0000MHZ LVDS SMD | XF | 48 MHz | LVDS | 3.3V |
| XFL336333.333000I | Renesas晶振 | XTAL OSC XO 333.3330MHZ LVDS SMD | XF | 333.333 MHz | LVDS | 3.3V |
| XFP536156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVPECL | XF | 156.25 MHz | LVPECL | 3.3V |
| XFL336450.000000I | Renesas晶振 | XTAL OSC XO 450.0000MHZ LVDS SMD | XF | 450 MHz | LVDS | 3.3V |
| XFC516025.000000I | Renesas晶振 | XTAL OSC XO 25.0000MHZ CML SMD | XF | 25 MHz | CML | 1.8V |
| XFL316270.000000I | Renesas晶振 | XTAL OSC XO 270.0000MHZ LVDS SMD | XF | 270 MHz | LVDS | 1.8V |
| XFL336025.000000I | Renesas晶振 | XTAL OSC XO 25.0000MHZ LVDS SMD | XF | 25 MHz | LVDS | 3.3V |
| XFL236644.531250I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 644.53125 MHz | LVDS | 3.3V |
| XFP216025.000000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 25 MHz | LVPECL | 1.8V |
| XFL236830.078125I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 830.078125 MHz | LVDS | 3.3V |
| XFL226156.250000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 156.25 MHz | LVDS | 2.5V |
| XFL236156.250000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 156.25 MHz | LVDS | 3.3V |
| XFN236156.250000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 156.25 MHz | HCSL | 3.3V |
| XFN216100.000000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 100 MHz | HCSL | 1.8V |
| XFL236108.000000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 108 MHz | LVDS | 3.3V |
| XFL216156.250000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 156.25 MHz | LVDS | 1.8V |
| XFP236161.132812I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 161.132812 MHz | LVPECL | 3.3V |
| XFP226156.250000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 156.25 MHz | LVPECL | 2.5V |
| XFP216625.000000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 625 MHz | LVPECL | 1.8V |
| XFL236148.500000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 148.5 MHz | LVDS | 3.3V |
| XFN216161.132812I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XF | 161.132812 MHz | HCSL | 1.8V |
| XFP216156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVPECL | XF | 156.25 MHz | LVPECL | 1.8V |
| XFN236025.000000I | Renesas晶振 | XTAL OSC XO 25.0000MHZ HCSL SMD | XF | 25 MHz | HCSL | 3.3V |
| XFC226156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ CML SMD | XF | 156.25 MHz | CML | 2.5V |
| XFL226026.000000I | Renesas晶振 | XTAL OSC XO 26.0000MHZ LVDS SMD | XF | 26 MHz | LVDS | 2.5V |
| XFL216625.000000I | Renesas晶振 | XTAL OSC XO 625.0000MHZ LVDS SMD | XF | 625 MHz | LVDS | 1.8V |
| XFL216397.770000I | Renesas晶振 | XTAL OSC XO 397.7700MHZ LVDS SMD | XF | 397.77 MHz | LVDS | 1.8V |
| XFL216078.125000I | Renesas晶振 | XTAL OSC XO 78.1250MHZ LVDS SMD | XF | 78.125 MHz | LVDS | 1.8V |
| XFC216837.500000I | Renesas晶振 | XTAL OSC XO 837.5000MHZ CML SMD | XF | 837.5 MHz | CML | 1.8V |
| XFL536040.000000I | Renesas晶振 | XTAL OSC XO 40.0000MHZ LVDS SMD | XF | 40 MHz | LVDS | 3.3V |
| XFP336048.000000I | Renesas晶振 | XTAL OSC XO 48.0000MHZ LVPECL | XF | 48 MHz | LVPECL | 3.3V |
| XFL516156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVDS SMD | XF | 156.25 MHz | LVDS | 1.8V |
| XFL536200.000000I | Renesas晶振 | XTAL OSC XO 200.0000MHZ LVDS SMD | XF | 200 MHz | LVDS | 3.3V |
| XFL525100.000000I | Renesas晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | XF | 100 MHz | LVDS | 2.5V |
| XFL516245.000000I | Renesas晶振 | XTAL OSC XO 245.0000MHZ LVDS SMD | XF | 245 MHz | LVDS | 1.8V |
| XFP336156.253906I | Renesas晶振 | XTAL OS XO 156.253906MHZ LVPECL | XF | 156.253906 MHz | LVPECL | 3.3V |
| XFL336165.000000I | Renesas晶振 | XTAL OSC XO 165.0000MHZ LVDS SMD | XF | 165 MHz | LVDS | 3.3V |
| XFL536156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVDS SMD | XF | 156.25 MHz | LVDS | 3.3V |
| XFL526100.000000I | Renesas晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | XF | 100 MHz | LVDS | 2.5V |
| XFL336161.132813I | Renesas晶振 | XTAL OSC XO 161.132813MHZ LVDS | XF | 161.132813 MHz | LVDS | 3.3V |
| XFL326300.000000I | Renesas晶振 | XTAL OSC XO 300.0000MHZ LVDS SMD | XF | 300 MHz | LVDS | 2.5V |
| XFL326161.132812I | Renesas晶振 | XTAL OSC XO 161.132812MHZ LVDS | XF | 161.132812 MHz | LVDS | 2.5V |
| XFL536153.600000I | Renesas晶振 | XTAL OSC XO 153.6000MHZ LVDS SMD | XF | 153.6 MHz | LVDS | 3.3V |
| XFP536045.158400I | Renesas晶振 | XTAL OSC XO 45.1584MHZ LVPECL | XF | 45.1584 MHz | LVPECL | 3.3V |
| XFN336212.500000I | Renesas晶振 | XTAL OSC XO 212.5000MHZ HCSL SMD | XF | 212.5 MHz | HCSL | 3.3V |
| XFP316156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVPECL | XF | 156.25 MHz | LVPECL | 1.8V |
| XFL516161.132812I | Renesas晶振 | XTAL OSC XO 161.132812MHZ LVDS | XF | 161.132812 MHz | LVDS | 1.8V |
| XFL336425.000000I | Renesas晶振 | XTAL OSC XO 425.0000MHZ LVDS SMD | XF | 425 MHz | LVDS | 3.3V |
| XFL336780.000000I | Renesas晶振 | XTAL OSC XO 780.0000MHZ LVDS SMD | XF | 780 MHz | LVDS | 3.3V |
| XFL326148.351648I | Renesas晶振 | XTAL OSC XO 148.351648MHZ LVDS | XF | 148.351648 MHz | LVDS | 2.5V |
| XFL516135.000000I | Renesas晶振 | XTAL OSC XO 135.0000MHZ LVDS SMD | XF | 135 MHz | LVDS | 1.8V |
| XFP536750.000000I | Renesas晶振 | XTAL OSC XO 750.0000MHZ LVPECL | XF | 750 MHz | LVPECL | 3.3V |
| XFL336400.000000I | Renesas晶振 | XTAL OSC XO 400.0000MHZ LVDS SMD | XF | 400 MHz | LVDS | 3.3V |
| XFL316050.000000I | Renesas晶振 | XTAL OSC XO 50.0000MHZ LVDS SMD | XF | 50 MHz | LVDS | 1.8V |
| XFL326148.500000I | Renesas晶振 | XTAL OSC XO 148.5000MHZ LVDS SMD晶振 | XF | 148.5 MHz | LVDS | 2.5V |
| XFL336603.229000I | Renesas晶振 | XTAL OSC XO 603.2290MHZ LVDS SMD | XF | 603.229 MHz | LVDS | 3.3V |
| XFL336033.300000I | Renesas晶振 | XTAL OSC XO 33.3000MHZ LVDS SMD | XF | 33.3 MHz | LVDS | 3.3V |
| XFP326100.000000I | Renesas晶振 | XTAL OSC XO 100.0000MHZ LVPECL | XF | 100 MHz | LVPECL | 2.5V |
| XFL336380.000000I | Renesas晶振 | XTAL OSC XO 380.0000MHZ LVDS SMD | XF | 380 MHz | LVDS | 3.3V |
| XFL536148.500000I | Renesas晶振 | XTAL OSC XO 148.5000MHZ LVDS SMD | XF | 148.5 MHz | LVDS | 3.3V |
| XFL316080.000000I | Renesas晶振 | XTAL OSC XO 80.0000MHZ LVDS SMD | XF | 80 MHz | LVDS | 1.8V |
| XFL316100.000000I | Renesas晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | XF | 100 MHz | LVDS | 1.8V |
