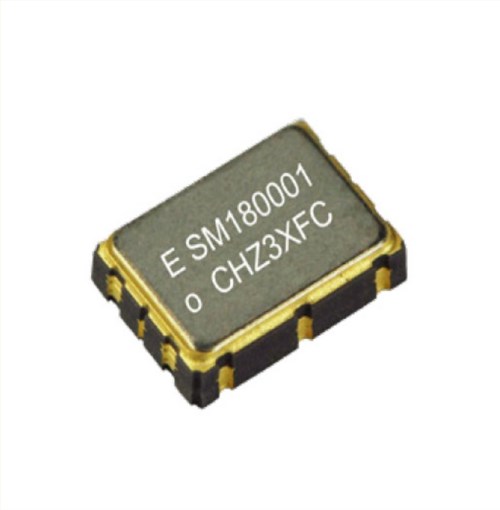

VG7050ECN 622.080000MHz CJGHPF,X1G004561100500通訊晶振

產品簡介

VG7050ECN 622.080000MHz CJGHPF,X1G004561100500通訊晶振，日本進口晶振，EPSON愛普生株式會社，型號：VG7050ECN，編碼為：X1G004561100500，頻率為：622.080000MHz，小體積晶振尺寸：7.0x5.0x1.5mm封裝，10腳貼片晶振，LV-PECL輸出差分晶振，可編程電壓控制振蕩器（VCXO），壓控晶振，石英晶體振蕩器，石英晶振，有源晶振，能夠輕易識別網絡信號以及精確的處理雙極信號。具有超小型，輕薄型，低抖動，低功耗，低耗能，低電源電壓，低損耗，低相位噪聲，低電平，滿足產品低消耗電流的特點。7050貼片晶振被廣泛應用于：通訊設備、機頂盒、無線網絡，藍牙模塊，光端機、6GWIFI，安防設備、路由器/交換機、儀器儀表、光纖通信，10G以太網，消費電子等應用。

產品詳情

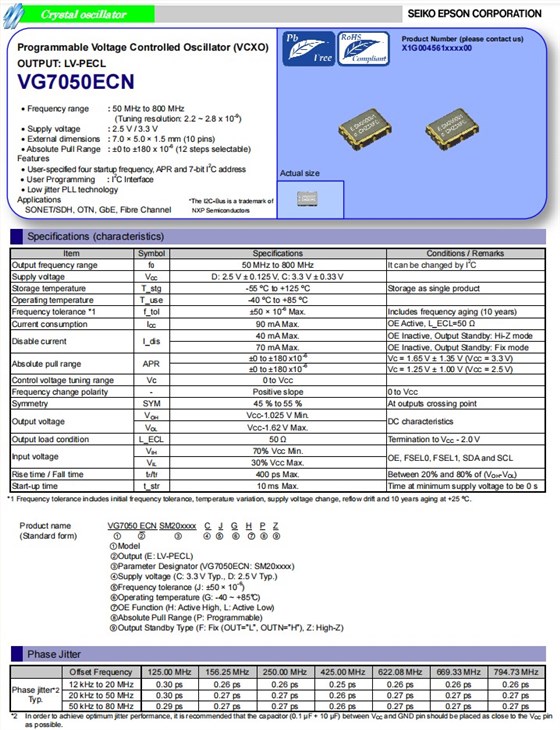

VG7050ECN 622.080000MHz CJGHPF,X1G004561100500通訊晶振參數表

Item	Symbol	VG7050ECN	Conditions / Remarks
Output frequency range	f0	622.080000MHz	It can be changed by I2C
Supply voltage	VCC	D:2.5V ±0.125V
Supply voltage	VCC	C:3.3V ±0.33V
Storage temperature	T_stg	-55°C to +125°C	Storage as single product
Operating temperature	T_use	G:-40°C to +85°C,
Frequency tolerance*1	f_tol	J: ± 50 × 10-6Max	Includes frequency aging (10 years)
Current consumption	ICC	90 mA Max.	OE Active,
Current consumption	ICC	90 mA Max.	L_ECL=50Ω
Disable current	I_dis	40mA Max.	OE Inactive, Output Standby: Hi-Z mode
Disable current	I_dis	70mA Max.	OE Inactive, Output Standby: Fix mode
Absolute pull range	APR	±0~±180 x 10-6	Vc = 1.65 V ± 1.35 V
		±0~±180 x 10-6	(VCC= 3.3 V)
		±0~±180 x 10-6	Vc = 1.25 V ± 1.00 V
		±0~±180 x 10-6	(VCC= 2.5 V)
Control voltage tuning range	Vc	0~Vcc
Frequency change polarity	-	Positive slope
Symmetry	SYM	45% ~ 55%	At outputs crossing point
Output voltage	VOH	VCC-1.025 V Min.	DC characteristics
Output voltage	VOL	VCC-1.62 V Max.	DC characteristics
Output load condition	L_ECL	50Ω	Termination to VCC-2.0V
Input voltage	VIH	70% VCCMin.	OE, FSEL0, FSEL1, SDA, and SCL
Input voltage	VIL	30% VCCMax.	OE, FSEL0, FSEL1, SDA, and SCL
Rise time / Fall time	tr / tf	400 ps Max.	20% ~ 80% (VOH- VOL)
Start-up time	t_str	10 ms Max.	Time at minimum supply voltage to be 0 s

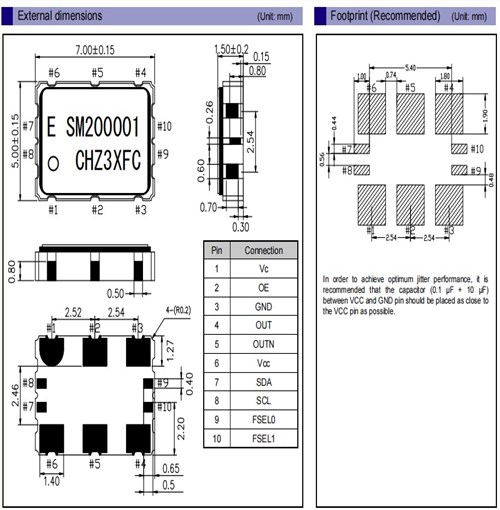

VG7050ECN 622.080000MHz CJGHPF,X1G004561100500通訊晶振尺寸圖

VG7050ECN 622.080000MHz CJGHPF,X1G004561100500通訊晶振

產品特點：

頻率范圍： 50MHz到800MHz（調諧分辨率： 2.2~2.8x10-9）

電源電壓： 2.5V / 3.3V

外部尺寸： 7.0×5.0×1.5毫米（10引腳）有源晶振

絕對拉范圍： ±0到±180 x 10-6（12步可選）功能

用戶指定的四個啟動頻率，4月和7位I2C地址

用戶編程： I2C接口

低抖動PLL技術

應用：超聲波/SDH，OTN，GbE，光纖通道

貼片石英晶振	品牌	型號	頻率	頻率穩定性	尺寸	輸出波形
X1G003691002100	EPSON晶振	VG-4512CA	148.351600 MHz	JHCT	7.00 x 5.00 x 1.60 mm	LV-PECL
X1G003691002200	EPSON晶振	VG-4512CA	148.500000 MHz	JHCT	7.00 x 5.00 x 1.60 mm	LV-PECL
X1G003691003400	EPSON晶振	VG-4512CA	122.880000 MHz	GHCT	7.00 x 5.00 x 1.60 mm	LV-PECL
X1G003691011300	EPSON晶振	VG-4512CA	122.880000 MHz	GGCT	7.00 x 5.00 x 1.60 mm	LV-PECL
X1G003691011400	EPSON晶振	VG-4512CA	125.000000 MHz	JGCT	7.00 x 5.00 x 1.60 mm	LV-PECL
X1G003691011500	EPSON晶振	VG-4512CA	156.250000 MHz	JGCT	7.00 x 5.00 x 1.60 mm	LV-PECL
X1G003691011600	EPSON晶振	VG-4512CA	157.286400 MHz	GGCT	7.00 x 5.00 x 1.60 mm	LV-PECL
X1G003691013400	EPSON晶振	VG-4512CA	153.600000 MHz	GGCT	7.00 x 5.00 x 1.60 mm	LV-PECL
X1G004151000300	EPSON晶振	VG-4513CB	122.880000 MHz	GGCT	5.00 x 3.20 x 1.30 mm	LV-PECL
X1G004151000400	EPSON晶振	VG-4513CB	153.600000 MHz	GGCT	5.00 x 3.20 x 1.30 mm	LV-PECL
X1G004151000700	EPSON晶振	VG-4513CB	122.880000 MHz	GGCT	5.00 x 3.20 x 1.30 mm	LV-PECL
X1G004151000900	EPSON晶振	VG-4513CB	153.600000 MHz	GFCT	5.00 x 3.20 x 1.30 mm	LV-PECL
X1G004151001300	EPSON晶振	VG-4513CB	125.000000 MHz	GGCT	5.00 x 3.20 x 1.30 mm	LV-PECL
X1G004151001600	愛普生晶振	VG-4513CB	156.250000 MHz	GGCT	5.00 x 3.20 x 1.30 mm	LV-PECL
X1G004541100300	EPSON晶振	VG7050EAN	622.080000 MHz	CJGLPZ	7.00 x 5.00 x 1.50 mm	LV-PECL
X1G004541100500	EPSON晶振	VG7050EAN	622.080000 MHz	CJGHPF	7.00 x 5.00 x 1.50 mm	LV-PECL
X1G004541100700	EPSON晶振	VG7050EAN	622.080000 MHz	CJGLPF	7.00 x 5.00 x 1.50 mm	LV-PECL
X1G004551000300	EPSON晶振	VG7050EBN	698.812335 MHz	CJGHBZ	7.00 x 5.00 x 1.50 mm	LV-PECL
X1G004551000400	EPSON晶振	VG7050EBN	794.727753 MHz	CJGHBZ	7.00 x 5.00 x 1.50 mm	LV-PECL
X1G004551000700	EPSON晶振	VG7050EBN	693.482990 MHz	CJGHBZ	7.00 x 5.00 x 1.50 mm	LV-PECL
X1G004551000800	EPSON晶振	VG7050EBN	698.812300 MHz	CJGHCZ	7.00 x 5.00 x 1.50 mm	LV-PECL
X1G004561100300	EPSON晶振	VG7050ECN	622.080000 MHz	CJGLPZ	7.00 x 5.00 x 1.50 mm	LV-PECL
X1G004561100500	EPSON晶振	VG7050ECN	622.080000 MHz	CJGHPF	7.00 x 5.00 x 1.50 mm	LV-PECL
X1G004561100700	EPSON晶振	VG7050ECN	622.080000 MHz	CJGLPF	7.00 x 5.00 x 1.50 mm	LV-PECL
X1M000391001700	EPSON晶振	EV1409EAN	1986.819000 MHz	CPENBA	14.00 x 9.00 x 2.60 mm	LV-PECL
