1XXA20000CAA,KDS低相噪振蕩器,DSA221SDN移動設備晶振，尺寸2.5x2.0mm，頻率20MHZ，日本進口晶振，大真空有源晶振，石英晶體振蕩器，VC-TCXO晶振，壓控溫補晶體振蕩器，2520mm有源晶振，有源貼片晶振，石英有源晶振，四腳有源晶振，低功耗有源晶振，低耗能有源晶振，低電壓有源晶振，低抖動有源晶振，低相位有源晶振，低相噪有源晶振，高品質有源晶振，移動設備專用有源晶振，GPS定位系統有源晶振，無線通信有源晶振，以太網專用有源晶振，藍牙模塊有源晶振，無線路由器有源晶振，具有低相位低相噪的特點。
OSC晶振產品比較常用于移動電話、GPS/GNSS、工業無線通信設備，以太網，無線路由器等應用。1XXA20000CAA,KDS低相噪振蕩器,DSA221SDN移動設備晶振.

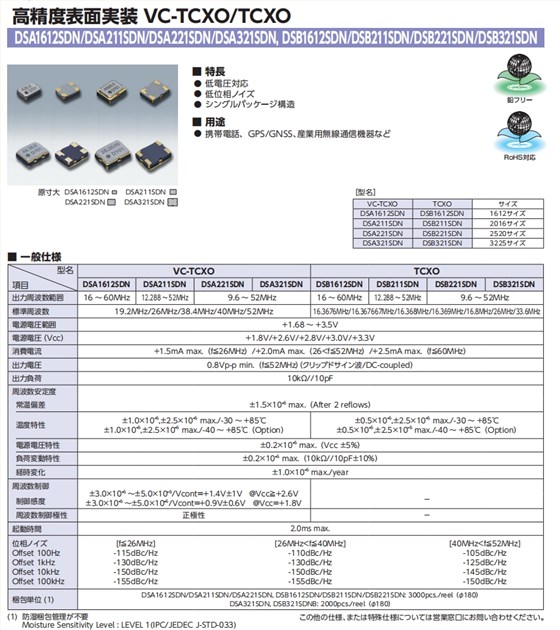

1XXA20000CAA,KDS低相噪振蕩器,DSA221SDN移動設備晶振 參數表
| 型號名稱 | DSA221SDN (VC-TCXO ) | |||
|---|---|---|---|---|
| 輸出頻率范圍 | 20MHz | |||
| 標準頻率 | 19.2 MHz/26 MHz/38.4 MHz/40 MHz/52m Hz | |||
| 電源電壓范圍 | +1.68~+3.5V | |||
| 電源電壓( Vcc ) | +1.8V/+2.6V/+2.8V/+3.0V/+3.3V | |||
| 消耗電流 | +1.5mA max.(f≦26MHz )/+2.0mA max.(26<f≦52MHz ) | |||
| 輸出電壓 | 0.8Vp-p min.(f≦52MHz ) (削波正弦波/DC-coupled ) | |||
| 輸出負載 | 10kΩ//10pF | |||
| 頻率穩定度 | 常溫偏差 | ±1.5×10-6max.(After 2 reflows ) | ||
| 溫度特性 |
±1.0×10-6±2.5×10-6max./-30?+85℃ ±1.0×10-6±2.5×10-6max./-40?+85℃(Option ) |
|||
| 電源電壓特性 | ±0.2×10-6max.(V抄送±5% ) | |||
| 負荷變動特性 | ±0.2×10-6max.(10kΩ//10pF±10% ) | |||
| 經時變化 | ±1.0×10-6max./year | |||
| 頻率控制 | 控制靈敏度 |
±3.0×10-6~±5.0×10-6/Vcont=+1.4V±1V @V抄送≧+2.6V ±3.0×10-6~±5.0×10-6/Vcont=+0.9V±0.6V @V抄送=+1.8V |
||
| 頻率控制極性 | 正極性 | |||
| 啟動時間 | 2.0ms max.。 | |||
|
相位噪聲 Offset 100Hz Offset 1kHz Offset 10kHz Offset 100kHz |
[f≦26MHz] -115dBc/Hz -130dBc/Hz -150dBc/Hz -155dBc/Hz |
[26MHz<f≦40MHz] -110dBc/Hz -130dBc/Hz -150dBc/Hz -155dBc/Hz |
[40MHz<f≦52MHz] -105dBc/Hz -125dBc/Hz -145dBc/Hz -150dBc/Hz |
|
| 包裝單位(1) | 3000pcs./reel(φ180 ) | |||

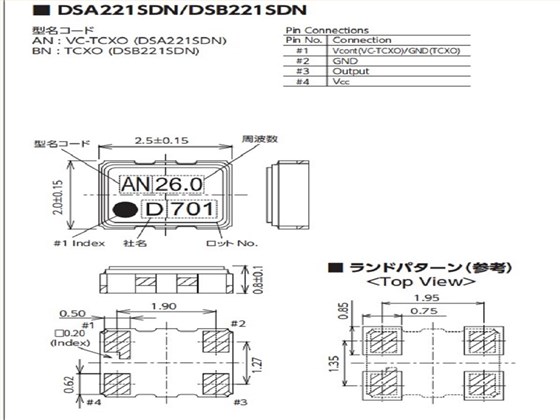

1XXA20000CAA,KDS低相噪振蕩器,DSA221SDN移動設備晶振 尺寸圖
1XXA20000CAA,KDS低相噪振蕩器,DSA221SDN移動設備晶振
VC-TCXO振蕩器產品特性：
低電壓對應
低相位噪聲
單封裝結構
| 進口晶振品牌 | 原廠代碼 | 型號 | 尺寸 | 頻率 | 負載/電壓 | 精度 |
| KDS晶振 | 7ED01638A03 | DSB321SDN | 3225 | 16.384M | ||
| KDS晶振 | 1XSE022579ARC | DSO321SR | 3225 | 22.5792M | 50PPM | |
| KDS晶振 | 1XXA26000FSB | DSA221SCL | 2520 | 26.000M | ||
| KDS晶振 | 1XXB38400MCB | DSB221SDN | 2520 | 38.4M | 3.3V | |
| KDS晶振 | 7EE05200A02 | DSB221SDN | 2520 | 52.000M | ||
| KDS晶振 | 1XXA10000MBA | DSA221SDN | 2520 | 10.000M | 3.3V | 0.5PPM |
| KDS晶振 | 1XXA26000MAA | DSA221SDN | 2520 | 26.000M | ||
| KDS晶振 | 1XXA32000MBA | DSA221SDN | 2520 | 32.000M | ||
| KDS晶振 | 1XXA20000CAA | DSA221SDN | 2520 | 20.000M | 3.3V | 1.5ppm |
| KDS晶振 | 1XTW16368FEA | DSB321SCL | 3225 | 16.368M | 2.8V | 2.5ppm |
| KDS晶振 | 1XSE009600AV | DSO321SV | 3225 | 9.6M | 3.3V | 100ppm |
| KDS晶振 | 1XSE098304AR2 | DSO321SR | 3225 | 98.304M | 3.3V | 50ppm |
| KDS晶振 | 1XTW38400MAA | DSB321SDN | 3225 | 38.400M | ||
| KDS晶振 | 1XTV21700PAA | DSA321SDN | 3225 | 21.7M | ||
| KDS晶振 | ZC12965 | DSA321SDN | 3225 | 23.04M | 3.3V | 1.5ppm |
| KDS晶振 | 1XVD008192VB | DSV321SV | 3225 | 8.192M | 3.3V | 40ppm |
| KDS晶振 | 1XVD024000VA | DSV321SV | 3225 | 24.000M | 3.3V | 40ppm |
| KDS晶振 | 1XVD030240VA | DSV321SV | 3225 | 30.240M | 3.3V | 50ppm |
| KDS晶振 | 1XVD051993VB | DSV321SV | 3225 | 51.993652M | 3.3V | 50ppm |
| KDS晶振 | 1XVD059928VA | DSV321SV | 3225 | 59.9285M | 3.3V | 50ppm |
| KDS晶振 | 1D73375GR1 | DSF633SDF | 6035 | 73.35M | ||
| KDS晶振 | 1D21407AQ3 | DSF753SAF | 7050 | 21.400M | ||
| KDS晶振 | 1D21430FQ4 | DSF753SCF | 7050 | 21.4M | ||
| KDS晶振 | 1D44818GQ1 | DSF753SBF | 7050 | 44.85M | ||
| KDS晶振 | 1D49915GQ24 | DSF753SDF | 7050 | 49.95M | ||
| KDS晶振 | 1D51610GQ1 | DSF753SBF | 7050 | 51.65M | ||
| KDS晶振 | CSTLS8M00G53-B0 | CSTLS | 9060 | 8.000M | 15PF | 0.50% |
| KDS晶振 | CSTLS4M00G53-B0 | CSTLS | 9060 | 4.000M | 15PF | 0.50% |
| KDS晶振 | CSTNE8M00G520000R0 | CSTNE | 3213 | 8.000M | 10PF | 0.50% |
| KDS晶振 | CSTNE8M00G550000R0 | CSTNE | 3213 | 8.000M | 33PF | 0.50% |
| KDS晶振 | CSTNE10M00G520000R0 | CSTNE | 3213 | 10.000M | 10PF | 0.50% |
| KDS晶振 | CSTNE10M00G550000R0 | CSTNE | 3213 | 10.000M | 33PF | 0.50% |
| KDS晶振 | CSTNE12M0G550000R0 | CSTNE | 3213 | 12.000M | 33PF | 0.50% |
| KDS晶振 | CSTNE16M0V53-R0 | CSTNE | 3213 | 16.000M | 15PF | 0.50% |
| KDS晶振 | XRCGB24M00F0L00R0 | XRCGB | 3225 | 24.000M | ||
| KDS晶振 | CSTCR4M00G53-R0 | CSTCR | 4520 | 4.000M | 15PF | 0.50% |
| KDS晶振 | CSTCC3M58G53-R0 | CSTCC | 7234 | 3.58M | 15PF | 0.50% |
| KDS晶振 | CSTCC4M00G53-R0 | CSTCC | 7234 | 4.000M | ||
| KDS晶振 | Q-SC20S0322070AAAF | SC-20S | 2012 | 32.768K | 7PF | 20PPM |
| KDS晶振 | X1A000061000500 | FC-12M | 2012 | 32.768K | 12.5PF | 20PPM |
| KDS晶振 | X1A000061000200 | FC-12M | 2012 | 32.768K | 12.5PF | 20PPM |
| KDS晶振 | X1A000061000800 | FC-12M | 2012 | 32.768K | 9PF | 20PPM |
| KDS晶振 | STD-MUB-1 | NX2012SA | 2012 | 32.768K | 12.5PF | |
| KDS晶振 | EXS00A-MU01289 | NX2012SA | 2012 | 32.768K | 12.5PF | |
| KDS晶振 | Q13FC1350004900 | FC-135 | 3215 | 32.768K | 6PF | 20PPM |
| KDS晶振 | Q-SC32S0322070AAAF | SC-32S | 3215 | 32.768K | 7PF | 20PPM |
| KDS晶振 | Q-SC32SC3220C5AAAF | SC-32S | 3215 | 32.768K | 12.5PF | 20PPM |
| KDS晶振 | Q13FC1350000200 | FC-135 | 3215 | 32.768K | 7PF | 20PPM |
| KDS晶振 | ETST00327000LE | ETST | 3215 | 32.768K | 7PF | 20PPM |
| KDS晶振 | CM315D32768DZFT | CM315D | 3215 | 32.768K | 12.5PF | 20PPM |
| KDS晶振 | EXS00A-MU00503 | NX3215SA | 3215 | 32.768K | 12.5PF | |
| KDS晶振 | STD-MUS-2 | NX3215SA | 3215 | 32.768K | 12.5PF | |
| KDS晶振 | A7EA327A | TFX-02S | 3215 | 32.768K | 12.5PF | 20PPM |
| KDS晶振 | Q13FC1350000400 | FC-135 | 3215 | 32.768K | 12.5PF | 20PPM |
| KDS晶振 | CM51932768DZFT | CM519 | 5020 | 32.768K | 12.5PF | 20PPM |
| KDS晶振 | CM13032768DZYT | CM130 | 7015 | 32.768K | 7PF | 10PPM |
| KDS晶振 | Q-SPT7P032762070FF | SSP-T7-F | 7015 | 32.768K | 7PF | 10PPM |
| KDS晶振 | Q13MC1462000100 | MC-146 | 7015 | 32.768K | 7PF | 20PPM |
| KDS晶振 | Q-SPT7P032762050CC | SSP-T7-F | 7015 | 32.768K | 12.5PF | 20PPM |
| KDS晶振 | CM200C32768DZFT | CM200C | 8038 | 32.768K | 12.5PF | |
| KDS晶振 | E3FB8E0000006E | E3FB | 3225 | 8.000M | 12PF | 10PPM |
