KDS大真空壓控晶振,1XVD024000VA,DSV321SV數字電視晶振，尺寸3.2x2.5mm，頻率24MHZ，電壓3.3V，日本大真空晶振，KDS有源振蕩器，日本進口晶振，石英壓控晶振，有源壓控振蕩器，SMD壓控晶振，3225mm有源晶振，VCXO壓控晶振，24MHZ有源晶振，壓控晶體振蕩器，低電壓壓控晶振，低功耗壓控晶振，低耗能壓控晶振，低相位壓控晶振，低相噪壓控晶振，高性能壓控振蕩器，數字視頻有源晶振，基礎傳輸有源晶振，北斗模塊壓控晶振，航空電子有源晶振，無線網絡有源晶振，具有高性能低相噪的特點。
有源晶振產品超級適合用于數字視頻，基礎傳輸，北斗模塊，航空電子，無線網絡，數字電視，STB，DVD等應用。KDS大真空壓控晶振,1XVD024000VA,DSV321SV數字電視晶振.

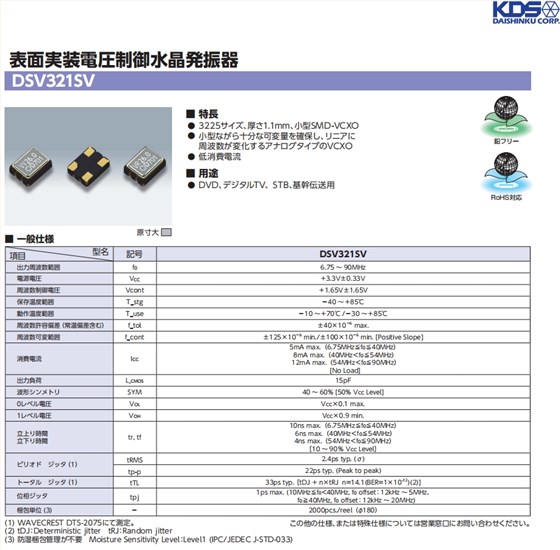

KDS大真空壓控晶振,1XVD024000VA,DSV321SV數字電視晶振 參數表
| 項目 | 型名 | 記號 | DSV321SV | ||||||||||||||||
| 出力周波數範囲 | f0 | 24MHz | |||||||||||||||||
| 電源電圧 | VCC | +3.3V±0.33V | |||||||||||||||||
| 周波數制御電圧 | Vcont | +1.65V±1.65V | |||||||||||||||||
| 保存溫度範囲 | T_stg | −40 ~ +85℃ | |||||||||||||||||
| 動作溫度範囲 | T_use | −10 ~＋70℃ /−30 ~＋85℃ | |||||||||||||||||
| 周波數許容偏差（常溫偏差含む) | f_tol | ±40×10−6max. | |||||||||||||||||
| 周波數可変範囲 | f_cont | ±125×10−6min./±100×10−6min. [Positive Slope] | |||||||||||||||||
| 消費電流 | ICC |
5mA max.（6.75MHz≦f0≦40MHz） 8mA max.（40MHz＜f0≦54MHz） 12mA max.（54MHz＜f0≦90MHz） [No Load] |
|||||||||||||||||
| 出力負荷 | L_CMOS | 15pF | |||||||||||||||||
| 波形シンメトリ | SYM | 40 ~ 60% [50％ VCCLevel] | |||||||||||||||||
| 0レベル電圧 | VOL | VCC×0.1 max. | |||||||||||||||||
| 1レベル電圧 | VOH | VCC×0.9 min. | |||||||||||||||||
|
立上り時間 立下り時間 |
tr, tf |
10ns max.（6.75MHz≦f0≦40MHz） 6ns max.（40MHz＜f0≦54MHz） 4ns max.（54MHz＜f0≦90MHz） ［10 ~ 90％ VCCLevel］ |
|||||||||||||||||
| ピリオドジッタ（1） | tRMS | 2.4ps typ. (σ) | |||||||||||||||||
| tp-p | 22ps typ. (Peak to peak) | ||||||||||||||||||
| トータルジッタ（1） | tTL | 33pstyp. ［tDJ + n×tRJn=14.1(BER=1×10-12)(2)] | |||||||||||||||||
| 位相ジッタ | tpj |
1ps max. (10MHz≦f0<40MHz, f0offset：12kHz ~ 5MHz、 f0≧40MHz, f0offset：12kHz ~ 20MHz) |
|||||||||||||||||
| 梱包単位 (3) | − | 2000pcs./reel(φ180） | |||||||||||||||||

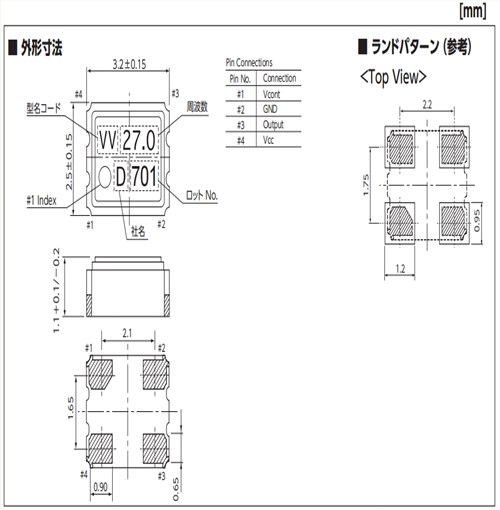

KDS大真空壓控晶振,1XVD024000VA,DSV321SV數字電視晶振 尺寸圖

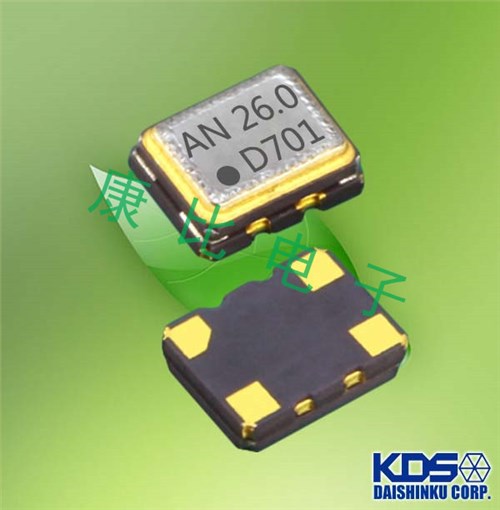

KDS大真空壓控晶振,1XVD024000VA,DSV321SV數字電視晶振
產品特性：
3225尺寸，厚度1.1mm，小型SMD-VCXO
雖然是小型但確保充分的可變量，線性地
頻率變化的模擬VCXO振蕩器
低耗電流
| 品牌 | 原廠代碼 | 型號 | 尺寸 | 頻率 | 負載/電壓 | 精度 |
| KDS晶振 | 1XXD26000MAA | DSB211SDN | 2016 | 26.000M | ||
| KDS晶振 | 1XXD38400MFA | DSB211SDN | 2016 | 38.400M | ||
| KDS晶振 | 1XXD40000PDA | DSB211SDN | 2016 | 40.000M | ||
| KDS晶振 | 1XXD32000PBA | DSB211SDN | 2016 | 32.000M | ||
| KDS晶振 | 1XXD52000PBA | DSB211SDN | 2016 | 52.000M | ||
| KDS晶振 | ZC12467 | DSA211SDN | 2016 | 16.32M | 3.3V | 1.5ppm |
| KDS晶振 | 7DF01920A09 | DSA211SDN | 2016 | 19.200M | ||
| KDS晶振 | 1XXC20000MAA | DSA211SDN | 2016 | 20.000M | ||
| KDS晶振 | 1XXB16369JFA | DSB221SDN | 2520 | 16.369M | 3.3V | 1.5ppm |
| KDS晶振 | 1XXB24000MEA | DSB221SDN | 2520 | 24.000M | ||
| KDS晶振 | 1XXB25000PAA | DSB221SDN | 2520 | 25.000M | ||
| KDS晶振 | 1XXB26000MAA | DSB221SDN | 2520 | 26.000M | ||
| KDS晶振 | 1XXB30000MBA | DSB221SDN | 2520 | 30.000M | ||
| KDS晶振 | 1XXB32000PAA | DSB221SDN | 2520 | 32.000M | ||
| KDS晶振 | 7ED03360A00 | DSB321SDN | 3225 | 33.6M | ||
| KDS晶振 | 7ED01638A03 | DSB321SDN | 3225 | 16.384M | ||
| KDS晶振 | 1XSE022579ARC | DSO321SR | 3225 | 22.5792M | 50PPM | |
| KDS晶振 | 1XTQ19200ELA | DSA535SG | 5032 | 19.200M | 50PPM | |
| KDS晶振 | 1XXA26000FSB | DSA221SCL | 2520 | 26.000M | ||
| KDS晶振 | 1XXB38400MCB | DSB221SDN | 2520 | 38.4M | 3.3V | |
| KDS晶振 | 7EE05200A02 | DSB221SDN | 2520 | 52.000M | ||
| KDS晶振 | 1XXA10000MBA | DSA221SDN | 2520 | 10.000M | 3.3V | 0.5PPM |
| KDS晶振 | 1XXA26000MAA | DSA221SDN | 2520 | 26.000M | ||
| KDS晶振 | 1XXA32000MBA | DSA221SDN | 2520 | 32.000M | ||
| KDS晶振 | 1XXA20000CAA | DSA221SDN | 2520 | 20.000M | 3.3V | 1.5ppm |
| KDS晶振 | 1XTW16368FEA | DSB321SCL | 3225 | 16.368M | 2.8V | 2.5ppm |
| KDS晶振 | 1XSE009600AV | DSO321SV | 3225 | 9.6M | 3.3V | 100ppm |
| KDS晶振 | 1XSE098304AR2 | DSO321SR | 3225 | 98.304M | 3.3V | 50ppm |
| KDS晶振 | 1XTW38400MAA | DSB321SDN | 3225 | 38.400M | ||
| KDS晶振 | 1XTV21700PAA | DSA321SDN | 3225 | 21.7M | ||
| KDS晶振 | ZC12965 | DSA321SDN | 3225 | 23.04M | 3.3V | 1.5ppm |
| KDS晶振 | 1XVD008192VB | DSV321SV | 3225 | 8.192M | 3.3V | 40ppm |
| KDS晶振 | 1XVD024000VA | DSV321SV | 3225 | 24.000M | 3.3V | 40ppm |
| KDS晶振 | 1XVD030240VA | DSV321SV | 3225 | 30.240M | 3.3V | 50ppm |
| KDS晶振 | 1XVD051993VB | DSV321SV | 3225 | 51.993652M | 3.3V | 50ppm |
| KDS晶振 | 1XVD059928VA | DSV321SV | 3225 | 59.9285M | 3.3V | 50ppm |
| KDS晶振 | 1D73375GR1 | DSF633SDF | 6035 | 73.35M | ||
| KDS晶振 | 1D21407AQ3 | DSF753SAF | 7050 | 21.400M | ||
| KDS晶振 | 1D21430FQ4 | DSF753SCF | 7050 | 21.4M | ||
| KDS晶振 | 1D44818GQ1 | DSF753SBF | 7050 | 44.85M | ||
| KDS晶振 | 1D49915GQ24 | DSF753SDF | 7050 | 49.95M | ||
| KDS晶振 | 1D51610GQ1 | DSF753SBF | 7050 | 51.65M | ||
| KDS晶振 | CSTLS8M00G53-B0 | CSTLS | 9060 | 8.000M | 15PF | 0.50% |
| KDS晶振 | CSTLS4M00G53-B0 | CSTLS | 9060 | 4.000M | 15PF | 0.50% |
| KDS晶振 | CSTNE8M00G520000R0 | CSTNE | 3213 | 8.000M | 10PF | 0.50% |
| KDS晶振 | CSTNE8M00G550000R0 | CSTNE | 3213 | 8.000M | 33PF | 0.50% |
| KDS Crystal | CSTNE10M00G520000R0 | CSTNE | 3213 | 10.000M | 10PF | 0.50% |
| KDS晶振 | CSTNE10M00G550000R0 | CSTNE | 3213 | 10.000M | 33PF | 0.50% |
| KDS晶振 | CSTNE12M0G550000R0 | CSTNE | 3213 | 12.000M | 33PF | 0.50% |
| KDS晶振 | CSTNE16M0V53-R0 | CSTNE | 3213 | 16.000M | 15PF | 0.50% |
| KDS晶振 | XRCGB24M00F0L00R0 | XRCGB | 3225 | 24.000M | ||
| KDS晶振 | CSTCR4M00G53-R0 | CSTCR | 4520 | 4.000M | 15PF | 0.50% |
| KDS晶振 | CSTCC3M58G53-R0 | CSTCC | 7234 | 3.58M | 15PF | 0.50% |
| KDS晶振 | CSTCC4M00G53-R0 | CSTCC | 7234 | 4.000M | ||
| KDS晶振 | Q-SC20S0322070AAAF | SC-20S | 2012 | 32.768K | 7PF | 20PPM |
| KDS晶振 | X1A000061000500 | FC-12M | 2012 | 32.768K | 12.5PF | 20PPM |
| KDS晶振 | X1A000061000200 | FC-12M | 2012 | 32.768K | 12.5PF | 20PPM |
| KDS晶振 | X1A000061000800 | FC-12M | 2012 | 32.768K | 9PF | 20PPM |
| KDS晶振 | STD-MUB-1 | NX2012SA | 2012 | 32.768K | 12.5PF | |
| KDS晶振 | EXS00A-MU01289 | NX2012SA | 2012 | 32.768K | 12.5PF | |
| KDS晶振 | Q13FC1350004900 | FC-135 | 3215 | 32.768K | 6PF | 20PPM |
| KDS晶振 | Q-SC32S0322070AAAF | SC-32S | 3215 | 32.768K | 7PF | 20PPM |
| KDS晶振 | Q-SC32SC3220C5AAAF | SC-32S | 3215 | 32.768K | 12.5PF | 20PPM |
| KDS晶振 | Q13FC1350000200 | FC-135 | 3215 | 32.768K | 7PF | 20PPM |
| KDS晶振 | ETST00327000LE | ETST | 3215 | 32.768K | 7PF | 20PPM |
| KDS晶振 | CM315D32768DZFT | CM315D | 3215 | 32.768K | 12.5PF | 20PPM |
| KDS晶振 | EXS00A-MU00503 | NX3215SA | 3215 | 32.768K | 12.5PF | |
| KDS晶振 | STD-MUS-2 | NX3215SA | 3215 | 32.768K | 12.5PF | |
| KDS晶振 | A7EA327A | TFX-02S | 3215 | 32.768K | 12.5PF | 20PPM |
| KDS晶振 | Q13FC1350000400 | FC-135 | 3215 | 32.768K | 12.5PF | 20PPM |
| KDS晶振 | CM51932768DZFT | CM519 | 5020 | 32.768K | 12.5PF | 20PPM |
| KDS晶振 | CM13032768DZYT | CM130 | 7015 | 32.768K | 7PF | 10PPM |
| KDS晶振 | Q-SPT7P032762070FF | SSP-T7-F | 7015 | 32.768K | 7PF | 10PPM |
| KDS晶振 | Q13MC1462000100 | MC-146 | 7015 | 32.768K | 7PF | 20PPM |
| KDS晶振 | Q-SPT7P032762050CC | SSP-T7-F | 7015 | 32.768K | 12.5PF | 20PPM |
| KDS晶振 | CM200C32768DZFT | CM200C | 8038 | 32.768K | 12.5PF | |
| KDS晶振 | E3FB8E0000006E | E3FB | 3225 | 8.000M | 12PF | 10PPM |
