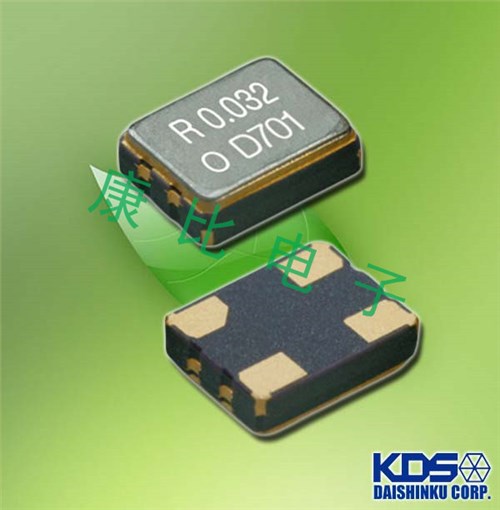

1XSE038400AR-DSO321SR-1.8V-38.4MHZ-3225mm-車載攝像機，尺寸為3225mm,頻率為38.4MHZ,電壓為1.8V,KDS晶振,有源晶振,OSC晶振,石英晶體振蕩器,日本進口晶振,有源貼片晶振，貼片晶體振蕩器，汽車電子專用晶振，汽車導航系統振蕩器，汽車音響晶振，多媒體裝置有源晶振，車載攝像機晶振，1XSE050000ART晶振，1XSE027000AR128晶振。
有源晶體振蕩器產品主要應用范圍：汽車導航系統、汽車音響等，還可廣泛應用多媒體裝置，車載攝像機，以及汽車電子等領域.1XSE038400AR-DSO321SR-1.8V-38.4MHZ-3225mm-車載攝像機.
1XSE038400AR-DSO321SR-1.8V-38.4MHZ-3225mm-車載攝像機參數表

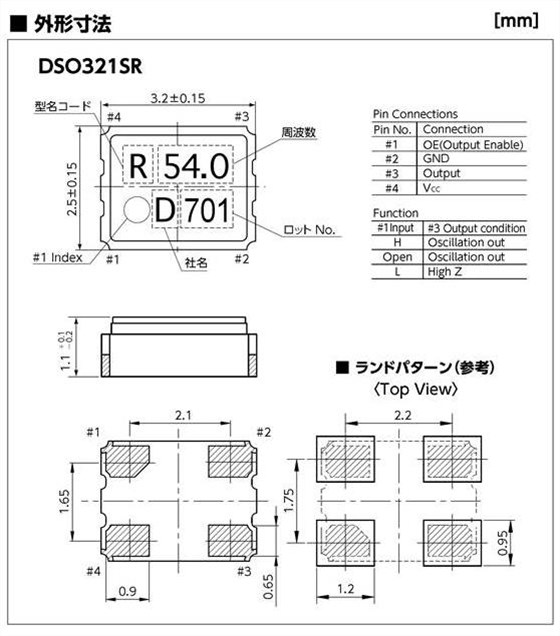

1XSE038400AR-DSO321SR-1.8V-38.4MHZ-3225mm-車載攝像機尺寸圖
1XSE038400AR晶振特點：
附有三狀態功能
-40~+125℃動作
AEC-Q200兼容
(可選:相當于AEC-Q100)
更多相關KDS晶振型號
| 品牌 | 原廠代碼 | 型號 | 尺寸 | 頻率 | 負載/電壓 | 精度 |
| KDS晶振 | 1XSE098304AR2 | DSO321SR | 3225 | 98.304MHZ | 3.3V | 50ppm |
| KDS晶振 | 1XSE009600AV | DSO321SV | 3225 | 9.6MHZ | 3.3V | 100ppm |
| KDS晶振 | 1XSE012000AR58 | DSO321SR | 3225 | 12.000MHZ | 3.3V | 50ppm |
| KDS晶振 | 1XSE038702AR | DSO321SR | 3225 | 38.7024MHZ | ||
| KDS晶振 | 1XST156250AKM | DSO323SK | 3225 | 156.25MHZ | 50PPM | |
| KDS晶振 | 1XSE025000AR5 | DSO321SR | 3225 | 25.000MHZ | ||
| KDS晶振 | 1XSE050000ART | DSO321SR | 3225 | 50MHZ | ||
| KDS晶振 | 1XSE024000AW1 | DSO321SW | 3225 | 24.000MHZ | ||
| KDS晶振 | 1XSE033333ARD | DSO321SR | 3225 | 33.3333MHZ | ||
| KDS晶振 | 1XSE013000AR7 | DSO321SR | 3225 | 13.000MHZ | 1.8V | 50PPM |
| KDS晶振 | 1XSE025000AR17 | DSO321SR | 3225 | 25.000MHZ | 3.3V | 50PPM |
| KDS晶振 | 1XSE038400AR | DSO321SR | 3225 | 38.4MHZ | 1.8V | 12PPM |
| KDS晶振 | 1XSE024000AR83 | DSO321SR | 3225 | 24.000MHZ | 1.8V | 20PPM |
| KDS晶振 | 1XSE027000AR128 | DSO321SR | 3225 | 27.000MHZ | 1.8V | 25PPM |
| KDS晶振 | 1XSE045000AR8 | DSO321SR | 3225 | 45MHZ | 3.3V | 0 |
| KDS晶振 | 1XSE050000AV6 | DSO321SR | 3225 | 50.000MHZ | 3.3V | 50PPM |
| KDS晶振 | 1XSE054000AR5 | DSO321SR | 3225 | 54MHZ | 3.3V | 30PPM |
| KDS晶振 | 1XSE064000AB | DSO321SR | 3225 | 64MHZ | 5V | 100PPM |
| KDS晶振 | 1XSE150000AR1 | DSO321SR | 3225 | 150.000MHZ | 3.3V | 50PPM |
| KDS晶振 | 1XSD048000AV2 | DSO531SV | 5032 | 48.000MHZ | 3.3V | 0 |
| KDS晶振 | 1XSE010000ARV | DSO321SR | 3225 | 10.000MHZ | ||
| KDS晶振 | 1XSE012000ARH | DSO321SR | 3225 | 12.000MHZ | ||
| KDS晶振 | 1XSE019200AR7 | DSO321SR | 3225 | 19.200MHZ | ||
| KDS晶振 | 1XSE024576ARH | DSO321SR | 3225 | 24.576MHZ | ||
| KDS晶振 | 1XSE025000ARW | DSO321SR | 3225 | 25.000MHZ |
