當前位置：首頁 » 歐美進口晶振 » GEYER晶振 » 格耶時鐘振蕩器,KXO-V97T以太網晶振,12.94364四腳有源晶振

prevnext

格耶時鐘振蕩器,KXO-V97T以太網晶振,12.94364四腳有源晶振

頻率：48MHZ

尺寸：7.0×5.0mm

格耶時鐘振蕩器,KXO-V97T以太網晶振,12.94364四腳有源晶振，尺寸7.0×5.0mm，頻率48MHZ，丹麥Geyer晶振，格耶石英振蕩器，OSC貼片晶振，7050mm有源晶振，有源貼片晶振，有源晶體振蕩器，石英貼片晶振，石英晶體振蕩器，時鐘振蕩器，環保型有源晶振，SMD振蕩器，低功耗有源晶振，低抖動有源晶振，低電壓有源晶振，低耗能有源晶振，低相位有源晶振，智能家居專用有源晶振，儀器設備有源晶振，測試測量專用有源晶振，數字視頻有源晶振，無人機專用有源晶振，無線路由器有源晶振，交換機有源晶振，具有低電壓低抖動的特點。有源晶振產品比較常用于智能家居，儀器設備，測試測量，數字視頻，無人機，無線路由器，交換機等領域。格耶時鐘振蕩器,KXO-V97T以太網晶振,12.94364四腳有源晶振.

訂購熱線：0755-27876201

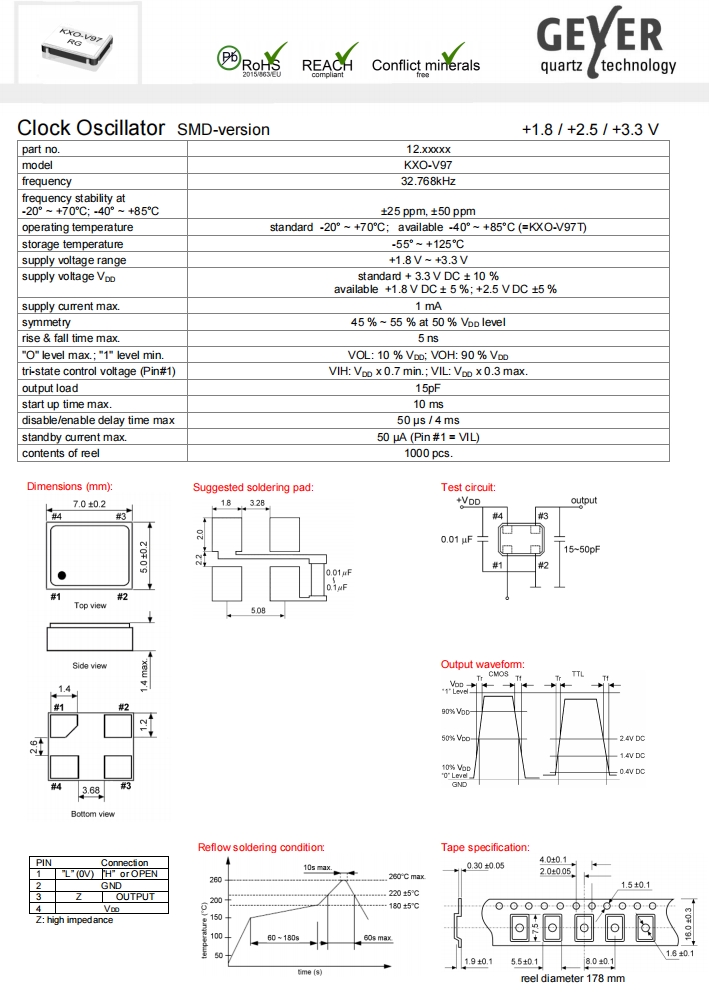

格耶時鐘振蕩器,KXO-V97T以太網晶振,12.94364四腳有源晶振 參數表

part no.				12.xxxxx
model				KXO-V97
frequency				48MHZ
frequency stability at -20° ~ +70°C; -40° ~ +85°C				±25 ppm, ±50 ppm
operating temperature				standard -20° ~ +70°C; available -40° ~ +85°C (=KXO-V97T)
storage temperature				-55°C~ +125°C
supply voltage range				+1.8 V ~ +3.3 V
supply voltage VDD				standard + 3.3 V DC ± 10 % available +1.8 V DC ± 5 %; +2.5 V DC ±5 %
supply current max.				1 mA
symmetry				45 % ~ 55 % at 50 % VDD level
rise & fall time max.				5 ns
"O" level max.; "1" level min.				VOL: 10 % VDD; VOH: 90 % VDD
tri-state control voltage (Pin#1)				VIH: VDD x 0.7 min.; VIL: VDD x 0.3 max.
output load				15pF
start up time max.				10 ms
disable/enable delay time max				50 µs / 4 ms
standby current max.				50 μA (Pin #1 = VIL)
contents of reel				1000 pcs.

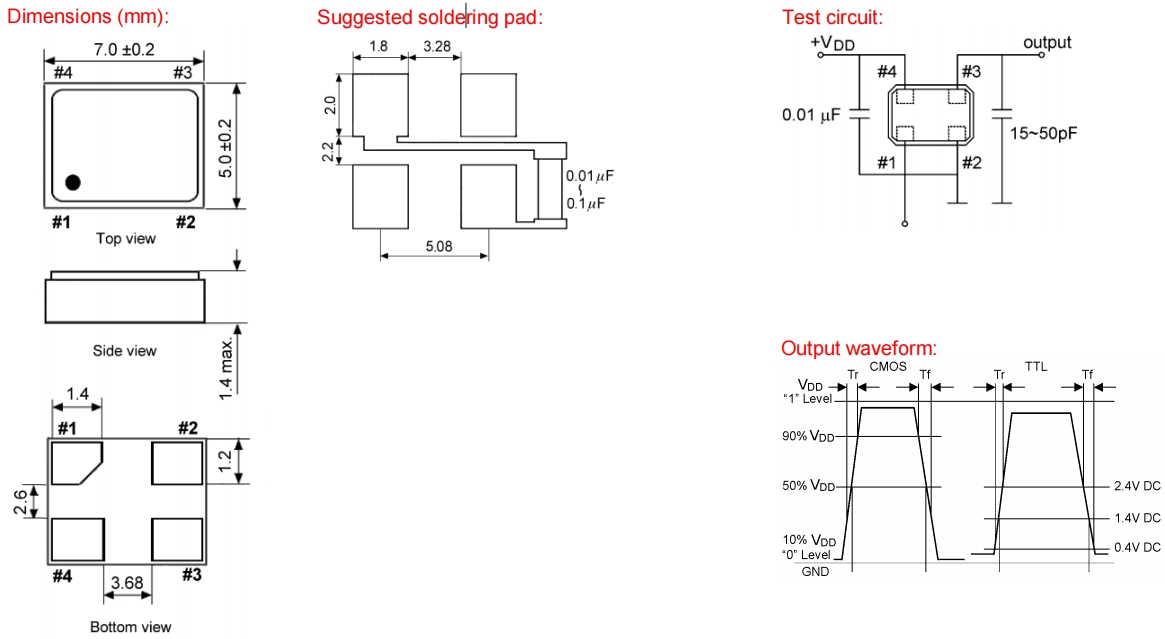

格耶時鐘振蕩器,KXO-V97T以太網晶振,12.94364四腳有源晶振 尺寸圖

格耶時鐘振蕩器,KXO-V97T以太網晶振,12.94364四腳有源晶振

OSC振蕩器產品特性：

尺寸7.0x5.0mm

非常低的老化

優異的耐壓性能

超高的可靠性能

Mfr Part #	Mfr	Description	Series	Type	Frequency
12.95582	Geyer Electronic America, Inc.	XTAL OSC XO 14.7456MHZ SMD	KXO-V95	XO (Standard)	14.7456 MHz
12.95549	Geyer Electronic America, Inc.	XTAL OSC XO 32.0000MHZ SMD	KXO-V95T	XO (Standard)	32 MHz
12.95531	Geyer Electronic America, Inc.	XTAL OSC XO 3.6864MHZ SMD	KXO-V95T	XO (Standard)	3.6864 MHz
12.90328	Geyer Electronic America, Inc.	XTAL OSC XO 16.0000MHZ CMOS SMD	KXO-V94T	XO (Standard)	16 MHz
12.90321	Geyer Electronic America, Inc.	XTAL OSC XO 14.7456MHZ HCMOS SMD	KXO-V94	XO (Standard)	14.7456 MHz
12.95545	Geyer Electronic America, Inc.	XTAL OSC XO 20.0000MHZ SMD	KXO-V95T	XO (Standard)	20 MHz
12.95103	Geyer Electronic America, Inc.	XTAL OSC XO 32.0000MHZ SMD	KXO-V96T	XO (Standard)	32 MHz
12.9558	Geyer Electronic America, Inc.	XTAL OSC XO 3.579545MHZ SMD	KXO-V95	XO (Standard)	3.579545 MHz
12.95094	Geyer Electronic America, Inc.	XTAL OSC XO 14.31818MHZ SMD	KXO-V96T	XO (Standard)	14.31818 MHz
12.95034	Geyer Electronic America, Inc.	XTAL OSC XO 20.0000MHZ SMD	KXO-V96T	XO (Standard)	20 MHz
12.95542	Geyer Electronic America, Inc.	XTAL OSC XO 12.0000MHZ SMD	KXO-V95T	XO (Standard)	12 MHz
12.94474	Geyer Electronic America, Inc.	XTAL OSC XO 27.0000MHZ SMD	KXO-V97T	XO (Standard)	27 MHz
12.90343	Geyer Electronic America, Inc.	XTAL OSC XO 12.0000MHZ SMD	KXO-V94T	XO (Standard)	12 MHz
12.90325	Geyer Electronic America, Inc.	XTAL OSC XO 3.6864MHZ HCMOS SMD	KXO-V94	XO (Standard)	3.6864 MHz
12.90311	Geyer Electronic America, Inc.	XTAL OSC XO 14.7456MHZ HCMOS SMD	KXO-V94	XO (Standard)	14.7456 MHz
12.95128	Geyer Electronic America, Inc.	XTAL OSC XO 27.0000MHZ SMD	KXO-V96E	XO (Standard)	27 MHz
12.95102	Geyer Electronic America, Inc.	XTAL OSC XO 80.0000MHZ SMD	KXO-V96T	XO (Standard)	80 MHz
12.90333	Geyer Electronic America, Inc.	XTAL OSC XO 40.0000MHZ SMD	KXO-V94T	XO (Standard)	40 MHz
12.90337	Geyer Electronic America, Inc.	XTAL OSC XO 26.0000MHZ SMD	KXO-V94T	XO (Standard)	26 MHz
12.94273	Geyer Electronic America, Inc.	XTAL OSC XO 32.0000MHZ SMD	KXO-V97T	XO (Standard)	32 MHz
12.94365	Geyer Electronic America, Inc.	XTAL OSC XO 14.31818MHZ SMD	KXO-V97T	XO (Standard)	14.31818 MHz
12.95546	Geyer Electronic America, Inc.	XTAL OSC XO 26.0000MHZ SMD	KXO-V95T	XO (Standard)	26 MHz
12.92106	Geyer Electronic America, Inc.	XTAL OSC XO 65.0000MHZ SMD	KXO-V97T	XO (Standard)	65 MHz
12.95571	Geyer Electronic America, Inc.	XTAL OSC XO 32.7680KHZ SMD	KXO-V95T	XO (Standard)	32.768 kHz
12.90344	Geyer Electronic America, Inc.	XTAL OSC XO 4.0000MHZ SMD	KXO-V94T	XO (Standard)	4 MHz
12.95538	Geyer Electronic America, Inc.	XTAL OSC XO 27.1200MHZ SMD	KXO-V95	XO (Standard)	27.12 MHz
12.94364	Geyer Electronic America, Inc.	XTAL OSC XO 48.0000MHZ SMD	KXO-V97T	XO (Standard)	48 MHz
12.95568	Geyer Electronic America, Inc.	XTAL OSC晶振 XO 48.0000MHZ SMD	KXO-V95F	XO (Standard)	48 MHz
12.90324	Geyer Electronic America, Inc.	XTAL OSC XO 27.0000MHZ HCMOS SMD	KXO-V94	XO (Standard)	27 MHz
12.94609	Geyer Electronic America, Inc.	XTAL OSC XO 1.0000MHZ SMD	KXO-V99	XO (Standard)	1 MHz
12.95101	Geyer Electronic America, Inc.	XTAL OSC XO 48.0000MHZ SMD	KXO-V96T	XO (Standard)	48 MHz
12.92146	Geyer Electronic America, Inc.	XTAL OSC XO 22.1184MHZ SMD	KXO-V97T	XO (Standard)	22.1184 MHz
12.90327	Geyer Electronic America, Inc.	XTAL OSC XO 48.0000MHZ HCMOS SMD	KXO-V94T	XO (Standard)	48 MHz
12.95091	Geyer Electronic America, Inc.	XTAL OSC XO 10.0000MHZ SMD	KXO-V96T	XO (Standard)	10 MHz
12.94449	Geyer Electronic America, Inc.	XTAL OSC XO 18.4320MHZ SMD	KXO-V97T	XO (Standard)	18.432 MHz
12.94456	Geyer Electronic America, Inc.	XTAL OSC XO 3.6864MHZ SMD	KXO-V97T	XO (Standard)	3.6864 MHz
12.95551	Geyer Electronic America, Inc.	XTAL OSC XO 48.0000MHZ SMD	KXO-V95T	XO (Standard)	48 MHz
12.90322	Geyer Electronic America, Inc.	XTAL OSC XO 20.0000MHZ CMOS SMD	KXO-V94T	XO (Standard)	20 MHz
12.95524	Geyer Electronic America, Inc.	XTAL OSC XO 25.0000MHZ SMD	KXO-V95E	XO (Standard)	25 MHz
12.9034	Geyer Electronic America, Inc.	XTAL OSC XO 32.7680KHZ SMD	KXO-V94T	XO (Standard)	32.768 kHz
12.95543	Geyer Electronic America, Inc.	XTAL OSC XO 14.31818MHZ SMD	KXO-V95T	XO (Standard)	14.31818 MHz
12.95104	Geyer Electronic America, Inc.	XTAL OSC XO 32.7680KHZ SMD	KXO-V96-18	XO (Standard)	32.768 kHz
12.94422	Geyer Electronic America, Inc.	XTAL OSC XO 11.0592MHZ SMD	KXO-V97T	XO (Standard)	11.0592 MHz
12.95548	Geyer Electronic America, Inc.	XTAL OSC XO 4.0000MHZ SMD	KXO-V95T	XO (Standard)	4 MHz
12.90307	Geyer Electronic America, Inc.	XTAL OSC XO 1.8432MHZ HCMOS SMD	KXO-V94	XO (Standard)	1.8432 MHz
