頻率：52MHz
尺寸：3.2x2.5mm
CS325-52.000MABJ-UT/52MHz/3225mm/±50ppm/18pF/影音設備晶振，日本進口晶振，CITIZEN西鐵城晶振，型號CS325，編碼為：CS325-52.000MABJ-UT，頻率為：52MHz，是一款小體積晶振尺寸3.2x2.5x0.55mm陶瓷封裝，四腳貼片晶振，石英晶振，無源晶振，石英晶體諧振器，無鉛環保晶振，工作溫度范圍：-40℃至+85℃，具有超小型，輕薄型，高密度SMD型，可靠的陶瓷包裝和優良的環境特性。適用于通信設備，智能手機，平板電腦，無線網絡，藍牙模塊，汽車電子，醫療設備，影音設備，數碼電子，智能家居等應用。

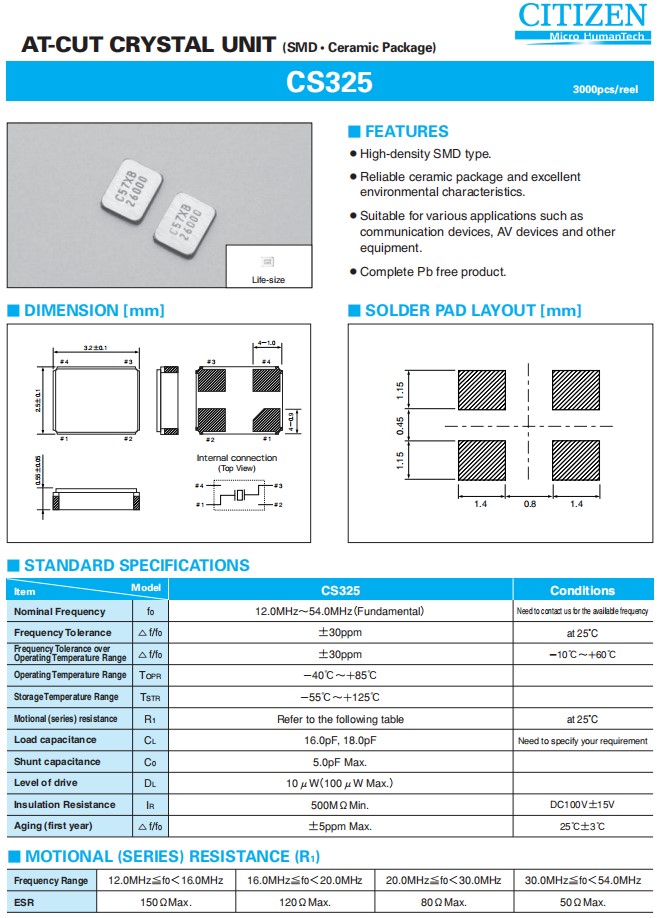

CS325-52.000MABJ-UT/52MHz/3225mm/±50ppm/18pF/影音設備晶振，參數表
| Item | Model | CS325 | Conditions | |
| Nominal Frequency |
 0
|
12.0MHz~54.0MHz(Fundamental) | Need to contact us for the available frequency | |
| Frequency Tolerance | △ f/f0 | ±30ppm | at 25?C | |
| Frequency Tolerance over Operating Temperature Range | △ f/f0 | ±30ppm | －10℃~＋60℃ | |
| Operating Temperature Range | TOPR | －40℃~＋85℃ | ||
| Storage Temperature Range | TSTR | －55℃~＋125℃ | ||
| Motional (series) resistance | R1 | Refer to the following table | at 25?C | |
| Load capacitance | CL | 16.0pF, 18.0pF | Need to specify your requirement | |
| Shunt capacitance | C0 | 5.0pF Max. | ||
| Level of drive | DL | 10μW(100μW Max.) | ||
| Insulation Resistance | IR | 500MΩMin. | DC100V±15V | |
| Aging (first year) | △ f/f0 | ±5ppm Max. | 25℃±3℃ | |

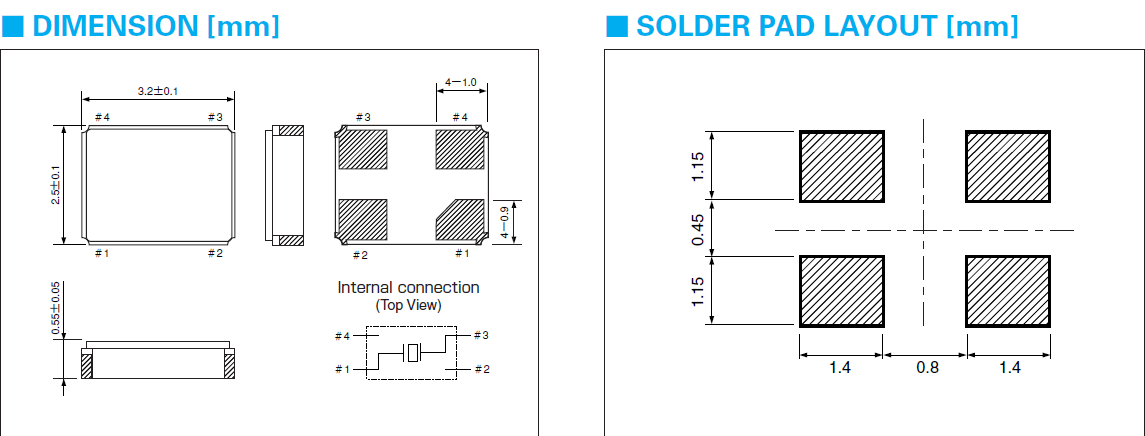

CS325-52.000MABJ-UT/52MHz/3225mm/±50ppm/18pF/影音設備晶振，尺寸圖
| 晶振廠家 | 原廠編碼 | 型號 | 頻率 | 頻率穩定度 | 包裝/封裝 | 尺寸 |
| Citizen晶振 | CS325-19.069928MABJ-UT | CS325 | 19.069928MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-18.9375MABJ-UT | CS325 | 18.9375MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-52.000MABJ-UT | CS325 | 52MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-20.500MABJ-UT | CS325 | 20.5MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-37.050MABJ-UT | CS325 | 37.05MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-44.000MABJ-UT | CS325 | 44MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-53.125MABJ-UT | CS325 | 53.125MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-40.000MABJ-UT | CS325 | 40MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-16.384MABJ-UT | CS325 | 16.384MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-29.49120MABJ-UT | CS325 | 29.4912MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-26.650MABJ-UT | CS325 | 26.65MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-33.000MABJ-UT | CS325 | 33MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-13.000MABJ-UT | CS325 | 13MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-13.560MABJ-UT | CS325 | 13.56MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-14.31818MABJ-UT | CS325 | 14.31818MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-16.000MABJ-UT | CS325 | 16MHz | ±50ppm | SMD-4P | 3225石英晶振 |
| Citizen晶振 | CS325-18.432MABJ-UT | CS325 | 18.432MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-19.200MABJ-UT | CS325 | 19.2MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-24.000MABJ-UT | CS325 | 24MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-24.576MABJ-UT | CS325 | 24.576MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-25.000MABJ-UT | CS325 | 25MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-26.000MABJ-UT | CS325 | 26MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-27.000MABJ-UT | CS325 | 27MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-28.6363MABJ-UT | CS325 | 28.6363MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-30.000MABJ-UT | CS325 | 30MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-32.000MABJ-UT | CS325 | 32MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-33.3333MABJ-UT | CS325 | 33.3333MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-48.000MABJ-UT | CS325 | 48MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-12.000MABJ-UT | CS325 | 12MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-24.500MABJ-UT | CS325 | 24.5MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-24.975MABJ-UT | CS325 | 24.975MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
| Citizen晶振 | CS325-27.120MABJ-UT | CS325 | 27.12MHz | ±50ppm | SMD-4P | 3.2x2.5x0.55mm |
