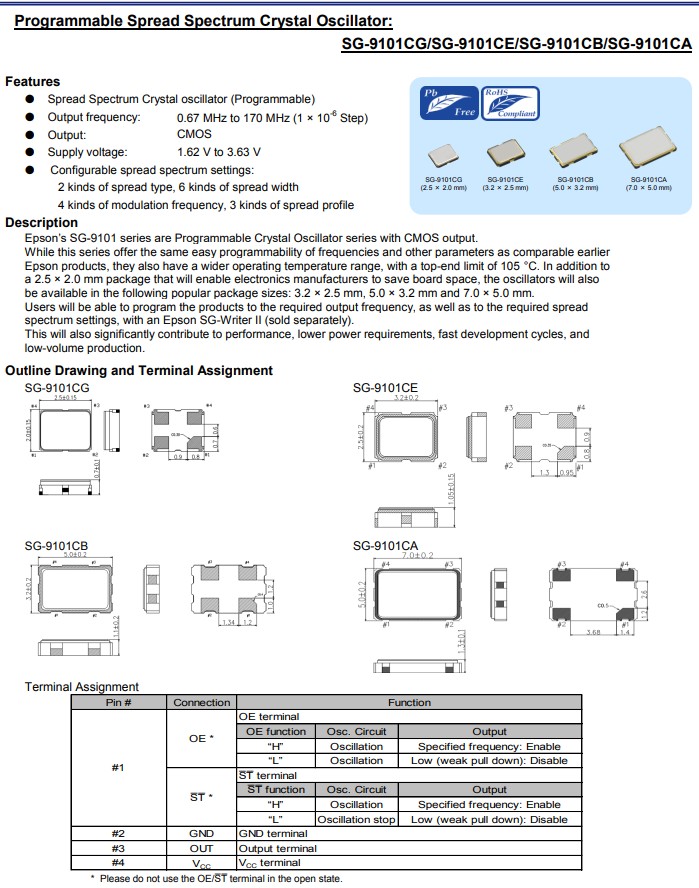

日本愛普生晶振SG-9101CA是具有CMOS輸出的可編程晶振系列，小體積尺寸7.0x5.0mm四腳貼片晶振，有源晶振，晶體振蕩器，電源電壓:1.62V至3.63V，頻率范圍:0.67MHz至170MHz，SG-9101系列石英晶體振蕩器還提供以下流行的封裝超小型晶振尺寸:2.5x2.0mm，3.2x2.5mm和5.0x3.2mm封裝使電子制造商能夠節省電路板空間。具有小體積輕薄型，低功耗，低抖動，高性能，高品質等特點，應用于鐘表、數碼產品、汽車電子、手機、對講機、數碼相機、MID平板電腦，光電技術等通訊設備及各種頻率控制設備。
SG-9101CA可編程晶振X1G005301001500可以滿足任何頻點的晶體振蕩器
                                                  貼片晶振
|
  頻率
|
  型號
|
  尺寸(長寬高)
|
  輸出波
|
  電源電壓
|
  工作溫度
|
| X1G005301001100 | 66.666000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301001200 | 40.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301001300 | 40.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301001400 | 16.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301001500 | 20.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301001600 | 48.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G005301001700 | 64.100000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G005301001800 | 16.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301001900 | 82.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G005301002000 | 50.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002100 | 30.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002200 | 66.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002300 | 50.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002400 | 66.660000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002500 | 40.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002600 | 33.333300MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002700 | 66.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002800 | 32.768000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G005301002900 | 66.666700MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003000 | 32.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003100 | 25.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G005301003200 | 40.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003300 | 75.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003400 | 50.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003500 | 25.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003600 | 13.500000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003700 | 14.745600MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003800 | 44.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003900 | 48.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004000 | 20.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004100 | 40.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004200 | 13.560000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004300 | 156.250000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G005301004400 | 66.666600MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004500 | 29.491200MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004600 | 19.660000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G005301004700 | 12.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004800 | 50.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004900 | 60.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301005000 | 2.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301005100 | 160.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301005200 | 29.461200MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
SG-9101CA可編程晶振X1G005301001500可以滿足任何頻點的晶體振蕩器
可編程晶振，很多人依然陌生的一頭霧水，其實在各種精密的電子儀器上，可編程晶振已得到廣泛的應用了。在普及可編程晶振的時候，也有人對這款‘新型產品’有不少的知識盲區，例如可編程晶振無源和有源晶振都會燒錄嗎？可編程現在被普及且廣泛使用的只有有源晶振，因為可編程晶振可定制所以支持封裝標準也較多，從國際封裝QFN封裝到7050、5032、3225、2520甚至更小的2016，客戶都可以按需選擇，同理也支持1.8V、 2.5V、2.8V、3.0V、3.3V等多種工作電壓匹配。還有客戶會把可編程晶振和溫補晶振混淆，其實可編程晶振內部集成了溫度補償電路，本身也具備溫度自動補償功能。
