DIODES百利通亞陶晶振所生產的石英晶振,貼片晶振,石英晶體振蕩器,壓電石英晶體元器件、壓電石英晶體、有源晶體廣泛應用于智能設備,汽車電子,無線通訊,網絡通信,精密儀器,GPS衛星,網絡控制器,全球GPS定位系統等領域.工程、銷售、倉儲和物流辦事處設在臺北,香港、曼徹斯特、上海、深圳、中國、韓國、慕尼黑、德國、以及世界各地的支持辦事處.

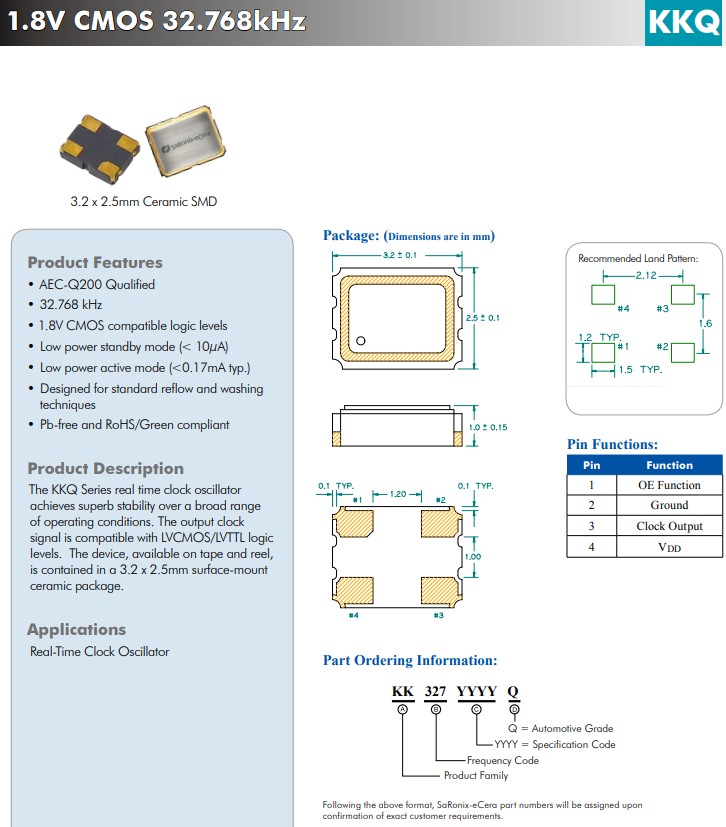

KKQ系列實時時鐘晶體振蕩器在廣泛的工作條件下實現了卓越的穩定性。1.8V、小體積尺寸3.2x2.5mm、32.768kHz、汽車級CMOS晶體振蕩器，輸出時鐘信號與LVCMOS/LVTTL邏輯電平兼容。該器件采用卷帶包裝，采用3.2x2.5mm表面貼裝陶瓷封裝。
產品特點：
符合AEC-Q200標準
頻率：32.768K晶振
1.8V CMOS兼容邏輯電平
低功耗待機模式（< 10μA）
低功耗主動模式（<0.17mA typ.）
專為標準回流和清洗
技術而設計
無鉛且符合RoHS/Green標準
應用：實時時鐘振蕩器
KKQ系列實時時鐘晶體振蕩器,KK3270046,CMOS晶體振蕩器,ECERA晶振
| HX3127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm | -40°C ~ 105°C |
| HX21480001 | Diodes Incorporated | SaRonix-eCera™ HX | 48MHz | ±50ppm | -40°C ~ 105°C |
| HX21480001 | Diodes Incorporated | SaRonix-eCera™ HX | 48MHz | ±50ppm | -40°C ~ 105°C |
| HX21480001 | Diodes Incorporated | SaRonix-eCera™ HX | 48MHz | ±50ppm | -40°C ~ 105°C |
| NX7031E0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm | -40°C ~ 85°C |
| NX7031E0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm | -40°C ~ 85°C |
| NX7031E0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm | -40°C ~ 85°C |
| HX2127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm | -40°C ~ 105°C |
| HX2127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm | -40°C ~ 105°C |
| HX2127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm | -40°C ~ 105°C |
| SHPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm | -40°C ~ 85°C |
| SHPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm | -40°C ~ 85°C |
| SHPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm | -40°C ~ 85°C |
| SQPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm | -40°C ~ 85°C |
| SQPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm | -40°C ~ 85°C |
| SQPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm | -40°C ~ 85°C |
| SN10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| SN10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| SN10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| SQA000001 | Diodes Incorporated | SaRonix-eCera™ SQ | 100MHz | ±50ppm | -40°C ~ 85°C |
| SQA000001 | Diodes Incorporated | SaRonix-eCera™ SQ | 100MHz | ±50ppm | -40°C ~ 85°C |
| SQA000001 | Diodes Incorporated | SaRonix-eCera™ SQ | 100MHz | ±50ppm | -40°C ~ 85°C |
| NX53D3301Z | Diodes Incorporated | SaRonix-eCera™ NX | 133.333333MHz | ±50ppm | -40°C ~ 85°C |
| NX53D3301Z | Diodes Incorporated | SaRonix-eCera™ NX | 133.333333MHz | ±50ppm | -40°C ~ 85°C |
| NX53D3301Z | Diodes Incorporated | SaRonix-eCera™ NX | 133.333333MHz | ±50ppm | -40°C ~ 85°C |
| JT2553P0016.369000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.369MHz | ±500ppb | -40°C ~ 85°C |
| JT2553P0016.369000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.369MHz | ±500ppb | -40°C ~ 85°C |
| JT2553P0016.369000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.369MHz | ±500ppb | -40°C ~ 85°C |
| JT15260001 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb | -30°C ~ 85°C |
| JT15260001 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb | -30°C ~ 85°C |
| JT15260001 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb | -30°C ~ 85°C |
| Subfamily | 32kHz XO |
|---|---|
| Product Series | KKQ |
| Compliance(Only Automotive supports PPAP) | Automotive |
| Freq Range (MHz) | 32.768KHZ |
| Jitter RMS (ps) | <1 ps RMS |
| Stability (PPM) | 20 to 50 |
| Package Size (mm) | 3.2 x 2.5 |
| PkgType | Ceramic Seam |
| Output Logic | CMOS |
| Supply Voltage (V) | 1.8 |
| Pads | 4 |
KKQ系列實時時鐘晶體振蕩器,KK3270046,CMOS晶體振蕩器,ECERA晶振
產品參數：
亞科 32kHz XO
產品系列 KKQ
合規性（僅汽車支持PPAP）汽車
頻率范圍 (MHz) 32.768KHZ
抖動均方根 (ps) <1 ps RMS
穩定性 20PPM到50PPM
包裝尺寸 3.2x2.5mm有源晶振
包裝類型 陶瓷縫
輸出邏輯 CMOS
電源電壓 1.8V
墊 4
應用：刀片服務器,基站,工控機,多功能打印機,機架服務器,存儲陣列,智能電網, DVD/藍光,安全, GPS ,機頂盒
| NX72F5506Z | Diodes Incorporated | SaRonix-eCera™ NX | 155.52MHz | ±50ppm | -20°C ~ 70°C |
| NX72F5506Z | Diodes Incorporated | SaRonix-eCera™ NX | 155.52MHz | ±50ppm | -20°C ~ 70°C |
| NX72F5506Z | Diodes Incorporated | SaRonix-eCera™ NX | 155.52MHz | ±50ppm | -20°C ~ 70°C |
| NX72F6208Z | Diodes Incorporated | SaRonix-eCera™ NX | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| NX72F6208Z | Diodes Incorporated | SaRonix-eCera™ NX | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| NX72F6208Z | Diodes Incorporated | SaRonix-eCera™ NX | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| HX51706001 | Diodes Incorporated | SaRonix-eCera™ HX | 70.656MHz | ±50ppm | -40°C ~ 105°C |
| HX51706001 | Diodes Incorporated | SaRonix-eCera™ HX | 70.656MHz | ±50ppm | -40°C ~ 105°C |
| HX51706001 | Diodes Incorporated | SaRonix-eCera™ HX | 70.656MHz | ±50ppm | -40°C ~ 105°C |
| HX7011C0020.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 20MHz | ±25ppm | -40°C ~ 105°C |
| HX7011C0020.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 20MHz | ±25ppm | -40°C ~ 105°C |
| HX7011C0020.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 20MHz | ±25ppm | -40°C ~ 105°C |
| PBF620074Z | Diodes Incorporated | SaRonix-eCera™ PB | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| PBF620074Z | Diodes Incorporated | SaRonix-eCera™ PB | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| PBF620074Z | Diodes Incorporated | SaRonix-eCera™ PB | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| NX3241E0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±50ppm | -40°C ~ 85°C |
| NX3241E0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±50ppm | -40°C ~ 85°C |
| NX3241E0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±50ppm | -40°C ~ 85°C |
| PXC500007 | Diodes Incorporated | SaRonix-eCera™ PX | 125MHz | ±50ppm | -20°C ~ 70°C |
| PXC500007 | Diodes Incorporated | SaRonix-eCera™ PX | 125MHz | ±50ppm | -20°C ~ 70°C |
| PXC500007 | Diodes Incorporated | SaRonix-eCera™ PX | 125MHz | ±50ppm | -20°C ~ 70°C |
| NX73K0004Z | Diodes Incorporated | SaRonix-eCera™ NX | 200MHz | ±50ppm | -40°C ~ 85°C |
| NX73K0004Z | Diodes Incorporated | SaRonix-eCera™ NX | 200MHz | ±50ppm | -40°C ~ 85°C |
| NX73K0004Z | Diodes Incorporated | SaRonix-eCera™ NX | 200MHz | ±50ppm | -40°C ~ 85°C |
| NX7021E0150.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 150MHz | ±50ppm | -40°C ~ 85°C |
| NX7021E0150.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 150MHz | ±50ppm | -40°C ~ 85°C |
| NX7021E0150.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 150MHz | ±50ppm | -40°C ~ 85°C |
| NX5041D0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±25ppm | -40°C ~ 85°C |
| NX5041D0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±25ppm | -40°C ~ 85°C |
| NX5041D0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±25ppm | -40°C ~ 85°C |
我們的汽車兼容晶體振蕩器(XO)旨在滿足汽車應用的嚴格要求，并在其部件號中以“Q”區分。它們是在經過嚴格IATF 16949標準認證的設施中制造的，并且能夠根據VDA6.3進行客戶審核。這些零件均受PPAP（生產零件批準流程）文檔支持，從而滿足汽車電子行業的所有要求。
此外，所有符合汽車標準的晶體振蕩器(XO)均已使用AECQ-200和QAP-81進行了認證，以涵蓋石英諧振器和XO IC，而不是使用AEC-Q100（僅針對 IC 定義）。我們計劃在2021年開始為我們新的符合汽車標準的 XO 產品逐步采用AECQ-104認證標準，但它不會將以前符合AECQ-200+QAP-81的產品重新認證為AEC-Q104（AECQ- 200 + QAP-81資格標準和AECQ-0104資格標準是測試數量和添加X射線檢查）。KKQ系列實時時鐘晶體振蕩器,KK3270046,CMOS晶體振蕩器,ECERA晶振
KKQ系列實時時鐘晶體振蕩器,KK3270046,CMOS晶體振蕩器,ECERA晶振
NX7021D0148.500000
Diodes Incorporated
SaRonix-eCera™ NX
148.5MHz
±25ppm
-40°C ~ 85°C
NX7021D0148.500000
Diodes Incorporated
SaRonix-eCera™ NX
148.5MHz
±25ppm
-40°C ~ 85°C
NX7021D0148.500000
Diodes Incorporated
SaRonix-eCera™ NX
148.5MHz
±25ppm
-40°C ~ 85°C
NX3221E0150.000000
Diodes Incorporated
SaRonix-eCera™ NX
150MHz
±50ppm
-40°C ~ 85°C
NX3221E0150.000000
Diodes Incorporated
SaRonix-eCera™ NX
150MHz
±50ppm
-40°C ~ 85°C
NX3221E0150.000000
Diodes Incorporated
SaRonix-eCera™ NX
150MHz
±50ppm
-40°C ~ 85°C
SNSAS2150
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
150MHz
±50ppm
-20°C ~ 70°C
SNSAS2150
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
150MHz
±50ppm
-20°C ~ 70°C
SNSAS2150
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
150MHz
±50ppm
-20°C ~ 70°C
PD10GE156
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
156.25MHz
±50ppm
-40°C ~ 85°C
PD10GE156
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
156.25MHz
±50ppm
-40°C ~ 85°C
PD10GE156
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
156.25MHz
±50ppm
-40°C ~ 85°C
PDF620008Z
Diodes Incorporated
SaRonix-eCera™ PD
156.25MHz
±50ppm
-40°C ~ 85°C
PDF620008Z
Diodes Incorporated
SaRonix-eCera™ PD
156.25MHz
±50ppm
-40°C ~ 85°C
PDF620008Z
Diodes Incorporated
SaRonix-eCera™ PD
156.25MHz
±50ppm
-40°C ~ 85°C
NX72G1102Z
Diodes Incorporated
SaRonix-eCera™ NX
161.132812MHz
±50ppm
-20°C ~ 70°C
NX72G1102Z
Diodes Incorporated
SaRonix-eCera™ NX
161.132812MHz
±50ppm
-20°C ~ 70°C
NX72G1102Z
Diodes Incorporated
SaRonix-eCera™ NX
161.132812MHz
±50ppm
-20°C ~ 70°C
NX7032C0200.000000
Diodes Incorporated
SaRonix-eCera™ NX
200MHz
±50ppm
-20°C ~ 70°C
NX7032C0200.000000
Diodes Incorporated
SaRonix-eCera™ NX
200MHz
±50ppm
-20°C ~ 70°C
NX7032C0200.000000
Diodes Incorporated
SaRonix-eCera™ NX
200MHz
±50ppm
-20°C ~ 70°C
UX52F62008
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-20°C ~ 70°C
UX52F62008
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-20°C ~ 70°C
UX52F62008
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-20°C ~ 70°C
UX54F62001
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX54F62001
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX54F62001
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
NX72W2201Z
Diodes Incorporated
SaRonix-eCera™ NX
322.265625MHz
±50ppm
-20°C ~ 70°C
NX72W2201Z
Diodes Incorporated
SaRonix-eCera™ NX
322.265625MHz
±50ppm
-20°C ~ 70°C
NX72W2201Z
Diodes Incorporated
SaRonix-eCera™ NX
322.265625MHz
±50ppm
-20°C ~ 70°C
JX5021E0156.250000
Diodes Incorporated
SaRonix-eCera™ JX
156.25MHz
±50ppm
-40°C ~ 85°C
JX5021E0156.250000
Diodes Incorporated
SaRonix-eCera™ JX
156.25MHz
±50ppm
-40°C ~ 85°C
JX5021E0156.250000
Diodes Incorporated
SaRonix-eCera™ JX
156.25MHz
±50ppm
-40°C ~ 85°C
UX73F62003
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX73F62003
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX73F62003
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX52F6204Z
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX52F6204Z
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX52F6204Z
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
UX72F6214Z
Diodes Incorporated
SaRonix-eCera™ UX
156.25MHz
±50ppm
-40°C ~ 85°C
KDQ 1.8V 20~50 3.2x2.5 CMOS 1.8 4 1.8V、5.0x3.2mm、32.768kHz、汽車級CMOS晶體振蕩器
KDQ 2.5V 20~50 5.0x3.2 CMOS 2.5 4 2.5V、5.0x3.2mm、32.768k、汽車級CMOS晶體振蕩器
KDQ 3.3V 20~50 5.0x3.2 CMOS 3.3 4 3.3V、5.0x3.2mm、32.768kHz、汽車級CMOS晶體振蕩器
KKQ 1.8V 20~50 3.2x2.5 CMOS 1.8 4 1.8V、3.2x2.5mm、32.768kHz、汽車級CMOS晶體振蕩器
KKQ 2.5V 20~50 3.2x2.5 CMOS 2.5 4 2.5V、3.2x2.5mm、32.768kHz、汽車級CMOS晶體振蕩器
KKQ 3.3V 20~50 3.2x2.5 CMOS 3.3 4 3.3V、3.2x2.5mm、32.768kHz、汽車級CMOS晶體振蕩器
